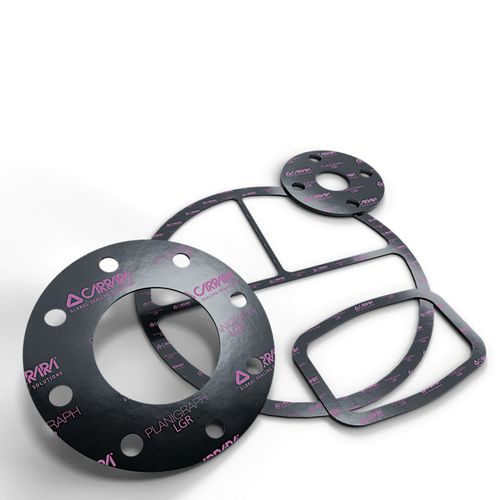

Expanded graphite gasket sheet PLANIGRAPH™ LGRstainless steelflangevalves
Add to favorites
Compare this product
Characteristics
- Material
- expanded graphite, stainless steel
- Product applications
- flange, valves, for heat exchangers, flexible
- Temperature limit
Min.: -196 °C
(-321 °F)Max.: 550 °C
(1,022 °F)- Pressure limit
75 bar
(1,087.8 psi)
Description
Flexible graphite C > 98,00% with smooth stainless steel core.
Characteristics
The LGR graphite gaskets offer an excellent performances for sealing the bonnet flanges of the valves and for sealing the heat exchangers. Improved permeability resistance can be achieved with the inner eyelet. For a perfect seal with this gasket it is recommended to use a thickness of 1.5 mm.
Applications
Graphite gaskets for bonnet flanges and heat exchangers. The graphite doesn't work with oxidizing fluids.
Catalogs
No catalogs are available for this product.
See all of Carrara Global Sealing Solution‘s catalogsOther Carrara Global Sealing Solution products
EXPANDED GRAPHITE SHEET PLANIGRAPH™
