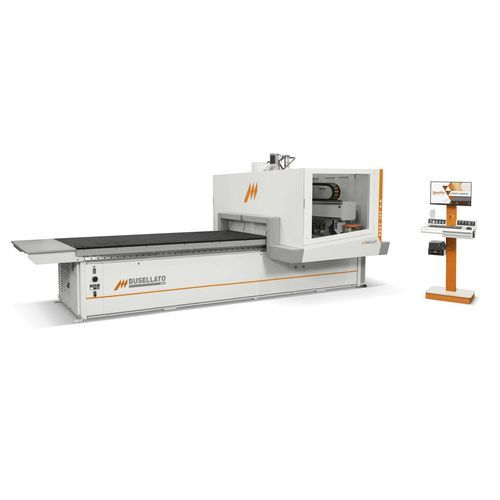

3-axis CNC machining center EASY JET

vertical10 tools16 tools

Product description
The EASY JET series are CNC working centers designed for intuitive operation by specialized technicians and craftsmen. The compact three-side access layout preserves the performance of larger models while minimizing the installation footprint. EASY JET is suitable for production of furniture components and interior doors.
Now available with automatic loading/unloading system "Cella Nesting".

Advantages

• Cost-effective compact configuration
• Three-side access reduces required floor space and simplifies loading/unloading
• Enhanced operator accessibility for setup and maintenance

Technical data (table)
Working field X - Y:
Easy Jet 4.8 — 2486 mm x 1255 mm
Easy Jet 5.12 — 3686 mm x 1555 mm
Easy Jet 6.12 — 3686 mm x 1855 mm
Easy Jet 7.10 — 3086 mm x 2155 mm
Easy Jet 7.14 — 4286 mm x 2155 mm

Workpiece clearance:
150 mm

Electrospindle power (S6) (Version A-B / Version C-D):
6.6 kW (std) / 9.5 kW (opt)

Spindles:
7 or 12 (std) / 11 or 18 (opt)

Tool changer (by model):
Easy Jet 4.8 — 8 std - 11 opt
Easy Jet 5.12 — 10 std - 14 opt
Easy Jet 6.12 — 11 std - 16 opt
Easy Jet 7.10 — 13 std - 19 opt
Easy Jet 7.14 — 13 std - 19 opt

Technical specifications

• Series name: EASY JET
• Working fields (X x Y) per model: 2486 x 1255 mm; 3686 x 1555 mm; 3686 x 1855 mm; 3086 x 2155 mm; 4286 x 2155 mm
• Workpiece clearance: 150 mm
• Electrospindle power (S6): 6.6 kW standard; 9.5 kW optional
• Spindles: standard 7 or 12 (depending on configuration); optional 11 or 18
• Tool changer: model-dependent (from 8 up to 19 positions, standard and optional configurations)
• Compact 3-side access design, suitable for furniture parts and interior doors production
