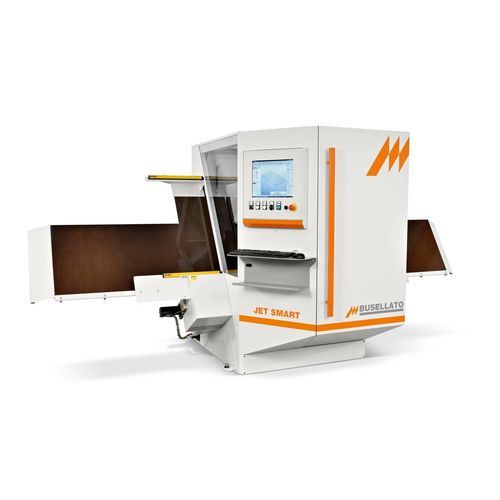

Vertical drilling machine JET SMARThorizontalfor woodmulti-spindle
Add to favorites
Compare this product
Characteristics
- Structure
- vertical, horizontal
- Applications
- for wood
- Number of spindles
- multi-spindle
- Other characteristics
- high precision, high-speed, with positioning system
- Power
5,500 W
- Rotational speed
18,000 rpm
(113,097.3 rad.min-1)
Description
Product description
The automatic drilling machine JET SMART is the ideal solution for craftsmen and small and medium enterprises. Flexibility, speed and ease of use are the main features of the machine which ensures high productivity and a perfect drilling in any working condition.
Advantages
Fast and precise drilling!
Boring from the top: a choice without compromises! Perfectly aligned joints and no error thanks to automatic reading of piece dimension, which allows correction of any difference between real panel length and the one set.
Technical data
JET SMART
Max. piece dimension: 3050x900x60 mm
Min. piece dimension: 200x70x10 mm
Max. speed axis X-Y: 40-40 m/min
Boring head (vertical / horizontal spindle, blade X): 12 / 6; 125 mm
Electrospindle (S6): 5.5 kW (7.5 HP) - 18.000 rpm
Media
Product page includes embedded videos and product images (image gallery and gallery lightbox).
Technical specifications
The automatic drilling machine JET SMART is the ideal solution for craftsmen and small and medium enterprises. Flexibility, speed and ease of use are the main features of the machine which ensures high productivity and a perfect drilling in any working condition.
Advantages
Fast and precise drilling!
Boring from the top: a choice without compromises! Perfectly aligned joints and no error thanks to automatic reading of piece dimension, which allows correction of any difference between real panel length and the one set.
Technical data
JET SMART
Max. piece dimension: 3050x900x60 mm
Min. piece dimension: 200x70x10 mm
Max. speed axis X-Y: 40-40 m/min
Boring head (vertical / horizontal spindle, blade X): 12 / 6; 125 mm
Electrospindle (S6): 5.5 kW (7.5 HP) - 18.000 rpm
Media
Product page includes embedded videos and product images (image gallery and gallery lightbox).
Technical specifications
- Model: JET SMART
- Brand: Casadei Busellato
- Max piece dimension: 3050 x 900 x 60 mm
- Min piece dimension: 200 x 70 x 10 mm
- Max speed (X-Y): 40-40 m/min
- Boring head type: vertical / horizontal spindle, blade X
- Boring head details: 12 / 6 (vertical/horizontal) — blade 125 mm
- Electrospindle (S6): 5.5 kW (7.5 HP), 18,000 rpm
