3-axis CNC machining center JET MASTER RT/C
4-axis5-axisvertical

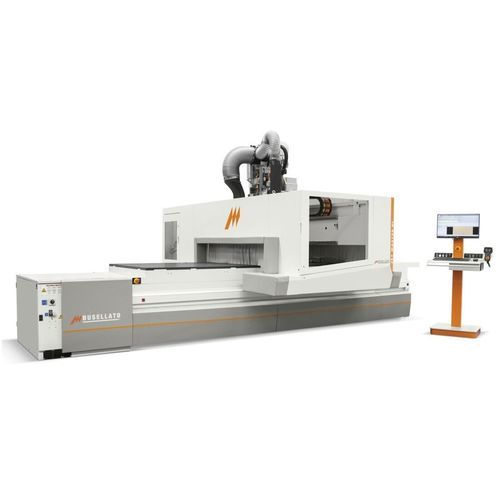

3-axis CNC machining center - JET MASTER RT/C - Casadei-Busellato - 4-axis / 5-axis / vertical
3-axis CNC machining center - JET MASTER RT/C - Casadei-Busellato - 4-axis / 5-axis / vertical
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis, 5-axis, 4-axis
Spindle orientation
vertical
Other characteristics
high-performance, compact
X travel

3,115 mm
(122.64 in)

Y travel

1,320 mm, 1,600 mm, 1,900 mm
(51.97 in, 62.99 in, 74.8 in)

Z travel

180 mm, 250 mm
(7.09 in, 9.84 in)

Power

9.5 kW, 10 kW, 13.5 kW, 15 kW
(12.92 hp, 13.6 hp, 18.35 hp, 20.39 hp)

Description

Overview
Compact, flexible 3/4/5-axis CNC machining centre for woodworking. Multifunction working table designed for advanced carpentry tasks including routing, drilling and complex 5-axis machining of panels and components.

Technical data (table)
JET MASTER RT/C
X axis: 3115 mm
Y axis: 1320 mm
Y axis panel width: 1600 mm std (1900 mm opt)
Z axis: 180 mm
Z axis panel clearance: 180 mm std (250 mm opt)
Power electrospindle 3/4 axis (S6): 9.5 kW std (15 kW opt)
Power electrospindle 5 axis (S6): 10 kW std (13.5 kW opt)

Media
  • Embedded product video available (YouTube)

Documentation
  • JET MASTER RT/C IT-EN-ES (product flyer in IT/EN/ES)

Technical specifications
  • X axis: 3115 mm
  • Y axis: 1320 mm
  • Y axis panel width: 1600 mm std (1900 mm opt)
  • Z axis: 180 mm
  • Z axis panel clearance: 180 mm std (250 mm opt)
  • Power electrospindle 3/4 axis (S6): 9.5 kW std (15 kW opt)
  • Power electrospindle 5 axis (S6): 10 kW std (13.5 kW opt)
