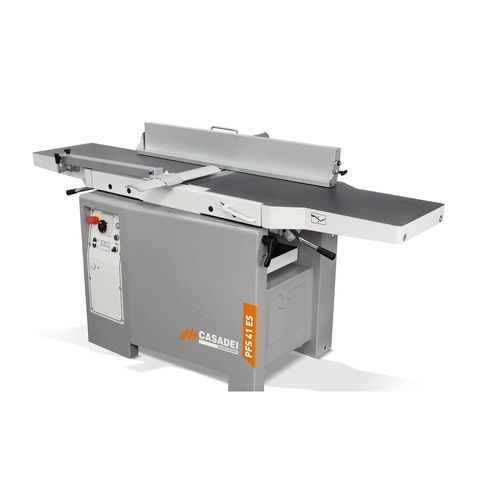

Planer-thicknesser surface planer PFS 41 ES

for wood

Product description
The PFS 41 ES combined surface/thickness planer is designed for demanding industrial woodworking applications. It incorporates very long ribbed cast-iron surface tables and a large tiltable surface fence that slides on a round steel bar to ensure accurate alignment of long workpieces. The planing unit is fitted with a steel cutterblock with four knives and a quick changeover system for fast conversion between surfacer and thicknesser.

Advantages

• Sturdiness: very long ribbed cast-iron surface tables provide reliable straightening of long parts; large surface fence tiltable 90°–45° with sliding on round steel bar ensures precise guidance.
• Reliability: steel cutterblock with 4 knives delivers consistent planing quality.
• Flexibility: quick changeover system enables rapid conversion from surface planer to thicknesser.

Technical data
PFS 41 ES
SURFACE PLANER
Maximum working width: 410 mm
Total length of surface tables: 2200 mm
THICKNESS PLANER
Maximum working width: 410 mm
Thicknessing table dimensions: 410 x 775 mm
Min./max. working height on thicknesser: 3/240 mm
GENERAL FEATURES
Motor power: 5 kW / 6.6 Hp at 50 Hz; 6 kW / 8 Hp at 60 Hz
Maximum cutting depth surface/thickness: 5 mm

Technical specifications

• Model: PFS 41 ES
• Surface planer maximum working width: 410 mm
• Total length of surface tables: 2200 mm
• Thickness planer maximum working width: 410 mm
• Thicknessing table dimensions: 410 x 775 mm
• Min./max. working height on thicknesser: 3 / 240 mm
• Motor power: 5 kW (6.6 Hp) at 50 Hz; 6 kW (8 Hp) at 60 Hz
• Maximum cutting depth (surface/thickness): 5 mm
