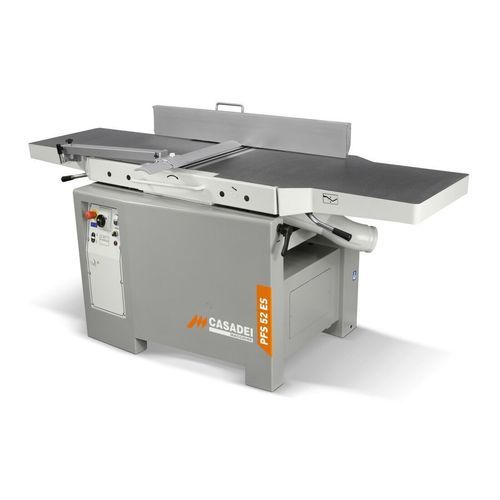

Planer-thicknesser surface planer PFS 52 ES

for wood

Description
The PFS 52 ES is a combined surface and thickness planer designed for processing long workpieces. It integrates long ribbed cast-iron surface tables and a tiltable surface fence to support straightening and precise machining of boards and large panels.

Advantages

• Stability: very long ribbed cast-iron surface tables ensure consistent support for long parts; large tiltable surface fence (90°–45°) slides on a round steel bar for accurate guidance.
• Reliability: steel cutterblock equipped with 4 knives provides durable cutting performance.
• Flexibility: quick changeover system allows switching between surfacer and thicknesser in seconds.

Technical data (table)
PFS 52 ES
SURFACE PLANER
Maximum working width: 520 mm
Total length of surface tables: 2250 mm
THICKNESS PLANER
Maximum working width: 520 mm
Thicknessing table dimensions: 520 x 850 mm
Min./max. working height on thicknesser: 3/240 mm
GENERAL FEATURES
Motor power: 7 kW (9.5 Hp) at 50 Hz; 8 kW (10 Hp) at 60 Hz
Maximum cutting depth surface/thickness: 5 mm

Specifications

• Model: PFS 52 ES
• Surface planer maximum working width: 520 mm
• Surface tables total length: 2250 mm
• Thickness planer maximum working width: 520 mm
• Thicknessing table dimensions: 520 x 850 mm
• Thicknesser working height range: 3 to 240 mm
• Motor power: 7 kW (9.5 Hp) at 50 Hz; 8 kW (10 Hp) at 60 Hz
• Maximum cutting depth (surface/thickness): 5 mm
• Cutterblock: steel cutterblock with 4 knives
• Surface fence: large, tiltable 90° - 45° with sliding on round steel bar
• Quick changeover system for fast switching between surfacer and thicknesser
