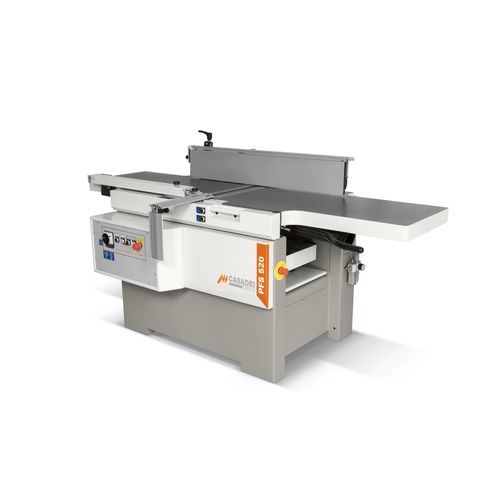

Planer-thicknesser surface planer PFS 520

for wood

Description
The PFS 520 is a combined surface (jointer) and thickness planer designed for craftsmen and carpenters who need high performance in limited workshop space. The machine integrates surfacing and thicknessing operations with compact overall dimensions and straightforward adjustments.

Advantages

• Flexibility: Simultaneous lifting of both surface tables via a link-and-rod system. Automatic positioning of cutterhead guard and dust hood. Quick changeover from surfacing to thicknessing using a locking knob.
• Reliability: Large-dimension thicknessing table mounted on four steel raising screws with bellows protection against dust.
• Sturdiness: Heavy-duty machine frame and robust planer unit with infeed anti-kickback fingers, segmented chipbreakers, serrated steel infeed roller with spiral teeth and rubber-coated outfeed roller.

Technical data
PFS 520
SURFACE PLANER
Total length of tables — 2300 mm
Useful working width of tables — 520 mm
Planing fence tiltable 90°÷45° — 1200 x 190 mm
THICKNESSING PLANER
Min/max working thickness — 3.5 / 250 mm
Feed speeds — 5 / 8 / 12 / 18 m/min

Technical specifications

• Model: PFS 520
• Machine type: Combined surface/thickness planer (2-operation combination)
• Intended users: Craftsmen and carpenters with limited space requiring high performance
• Surface planer — total length of tables: 2300 mm
• Surface planer — useful working width of tables: 520 mm
• Planing fence: tiltable from 90° to 45°, size 1200 x 190 mm
• Thicknessing planer — min/max working thickness: 3.5 to 250 mm
• Thicknessing planer — feed speeds: 5, 8, 12, 18 m/min
• Thicknessing table: mounted on 4 steel raising screws; bellows protection against dust
• Planer unit features: infeed anti-kickback fingers; segmented chipbreakers; serrated steel infeed roller with spiral teeth; rubber coated outfeed roller
• Table lifting: simultaneous via link and rod system; automatic positioning of cutterhead protection and dust extraction hood; quick changeover via locking knob
• Construction: heavy-duty, thick machine frame for sturdiness
