continuous flight auger (CFA) drilling rig / piling / rotary / hydraulic
B200 XP

{{requestButtons}}

Characteristics

  • Drilling type:

    continuous flight auger (CFA)

  • Applications:

    piling

  • Drilling unit:

    rotary

  • Other characteristics:

    hydraulic

  • Drilling diameter:

    Min.: 0 mm

    Max.: 1,000 mm

  • Drilling depth:

    Min.: 0 m (0'00")

    Max.: 26.8 m (87'11")

Description

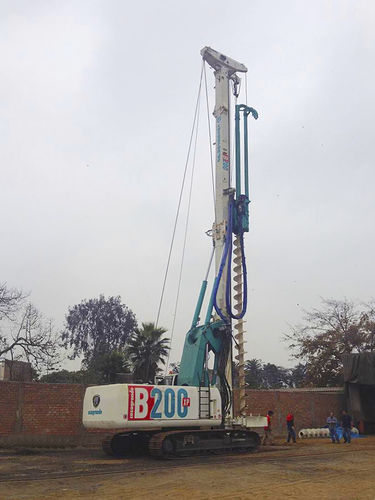

The Casagrande B200 XP in CFA Configuration is a machine dedicated to giving the specialist contractor equipment to perform large diameter rotary and CFA piling. It is the result of research and innovation based on over 50 years of experience and success of the company in the field of foundations and geotechnical engineering

The Casagrande B200 XP is a multifunction machine designed to drill boreholes, to insert and extract casings, to power a casing oscillator, for piling by the continuous flight auger method and ready for conversion in diaphragm wall equipment.

Designed to work on the most difficult sites and has excellent technical characteristics: 240 kN high speed winch for fast work, the H22 rotary head has a maximum torque output of 210 kNm and speed up to 34 rpm, it is ideal for drilling large and small diameter boreholes and for driving long casings.

“Keep the operator happy in a comfortable working environment” is our formula for added productivity. The B200 XP is designed to satisfy the European Union standards on safety and is manufactured to comply with the ISO 9001 requirements on quality.
