piling drilling rig / continuous flight auger (CFA) / crawler / rotary
B250XP-2

{{requestButtons}}

Characteristics

  • Drilling type:

    piling, continuous flight auger (CFA)

  • Mobility:

    crawler

  • Drilling unit:

    rotary

  • Other characteristics:

    hydraulic

  • Drilling diameter:

    Min.: 0 mm

    Max.: 1,200 mm

  • Drilling depth:

    Min.: 0 m (0'00")

    Max.: 29 m (95'01")

Description

Casagrande’s new series of XP-2 in CFA Configuration hydraulic piling rigs are designed and built using the latest state-of the-art techniques. A range of machines engineered to satisfy the needs of the most demanding contractor with emphasis on performance, reliability and economy.

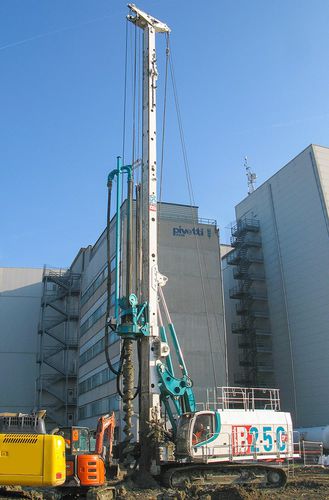

The Casagrande B250 XP-2 is a multifunction machine designed to drill boreholes, to insert and extract casings, to power a of casing oscillator, for piling by the continuous fl ight auger method and ready for conversion in diaphragm wall equipment.

Designed to work on the most diffi cult sites and has excellent technical characteristics: 270 kN high speed winche for fast work, the new H 26 rotary head has a maximum torque output of 263 kNm and speed up to 39 rpm, it is ideal for drilling large and small diameter boreholes and for driving long casings

“Keep the operator happy in a comfortable working environment” is our formula for added productivity. The B250 XP-2 is designed to satisfy the European Union standards on safety and is manufactured to comply with the ISO 9001 requirements on quality.
