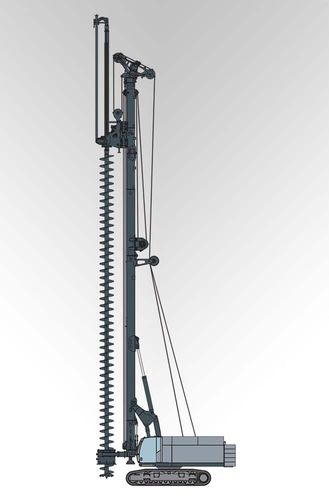

Continuous flight auger (CFA) drilling rig B400XP-2
multifunctionpilingdeep

continuous flight auger (CFA) drilling rig
continuous flight auger (CFA) drilling rig
Add to favorites
Compare this product


Characteristics

Drilling type
continuous flight auger (CFA)
Applications
multifunction, piling, deep, diaphragm wall
Mobility
crawler
Drilling unit
rotary
Other characteristics
hydraulic
Drilling diameter

Min.: 0 mm
(0 in)

Max.: 1,200 mm
(47 in)

Drilling depth

Min.: 0 m
(0'00" )

Max.: 34 m
(111'06" )

Machine weight

124 t
(136.7 us ton)

Motor power

450 kW
(611.83 hp)

Description

Casagrande’s new series of XP-2 in CFA Configuration hydraulic piling rigs are designed and built using the latest state-of the-art techniques. A range of machines engineered to satisfy the needs of the most demanding contractor with emphasis on performance, reliability and economy. The Casagrande B400 XP-2 is a multifunction machine designed to drill boreholes, to insert and extract casings, to power a casing oscillator, for piling by the continuous flight auger method and ready for conversion in diaphragm wall equipment. Due to the high torque of the rotary head of up to 467 kNm, the HD kelly bars and a powerful winch, the B400 XP-2 can rapidly drill deep and large piles in hard soils. The crowd winch will drive casings deep into the ground with extreme accuracy having a line pull of 600 kN and rotary head stroke of 21 m “Keep the operator happy in a comfortable working environment” is our formula for added productivity. The B400 XP-2 is designed to satisfy the severe European Union standards on safety and is manufactured to comply with the ISO 9001 requirements on quality.
