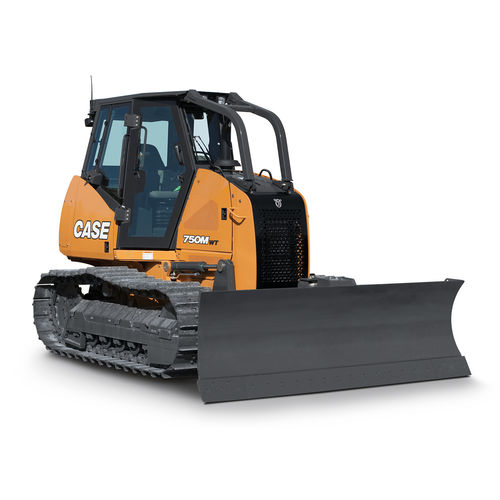

Crawler bulldozer 750M

for constructioncommercial

Overview
The CASE 750M is a compact, high‑performance dozer engineered for finish grading and intensive earthmoving tasks. With an operating weight of 20,228 lb and 41,000 lb of drawbar pull, it delivers reliable traction and stable performance across varied jobsite conditions. The advanced load management system adapts track speed to load, while a robust undercarriage design improves component life and reduces vibration. The redesigned cab and EH blade joystick provide improved visibility and simplified blade control.

Quick specs

• Horsepower: 96 hp | 72 kW
• Operating weight: 20,228 lb | 9 175 kg
• Drawbar pull: 41,000 lb

Operator environment

• ROPS canopy, isolation mounted; single-lever control for speed, steering and direction
• Vinyl mechanical suspension seat with tilt access; retractable 3 in (76 mm) seat belt
• Rearview mirror; optional ROPS cab includes Bluetooth radio and additional mirror

Engine

• FPT F5HFL413J*A002
• Tier 4 Final certified (CEGR + DPF)
• Designed for efficient torque delivery and emissions compliance

Blade

• 52°–60° variable pitch with integral adjustment tool
• Single-lever electro-hydraulic control for blade lift, angle and tilt

Undercarriage

• Hydraulic track adjusters
• Easy-clean track covers
• Sealed and Lubricated Track (SALT) chain
• Permanently lubricated track and carrier rollers and idlers

Telematics

• myCASEConstruction 4G telematics: hardware included plus 7-year advanced data subscription

Optional equipment

• Rear-mounted: 5-position ripper with 3 shanks; hydraulic pump with PTO; drawbar
• Available blades: 96 in (2.44 m) LT; 108 in (2.73 m) LT/WT/LGP; 124 in (3.16 m) WT/LGP
• Additional options: Case Max-Life track; front counterweight; severe cold weather package; rear-view camera (cab only)
• Precision systems: Factory Fit CoPilot; Factory Fit 2D Laser; Factory Fit 3D GNSS; Universal Blade Guidance compatible with Leica, Trimble and Topcon

Warranty

• Three-year / 3,000-hour full-machine factory warranty
• 7-year advanced myCASEConstruction subscription included

Technical specifications

• Model: 750M
• Horsepower: 96 hp | 72 kW
• Operating weight: 20,228 lb | 9 175 kg
• Drawbar pull: 41,000 lb
• Engine: FPT F5HFL413J*A002, Tier 4 Final, CEGR + DPF
• Blade: 52°–60° variable pitch; electro-hydraulic single-lever control for lift, angle and tilt
• Undercarriage: hydraulic track adjusters; easy-clean track covers; SALT; permanently lubricated rollers and idlers
• Telematics: myCASEConstruction 4G with 7-year advanced data subscription
• Available blade widths: 96 in (2.44 m) LT; 108 in (2.73 m) LT/WT/LGP; 124 in (3.16 m) WT/LGP
• Optional rear-mounted ripper: 5-position with 3 shanks
• Warranty: 3 years / 3,000 hours full-machine
