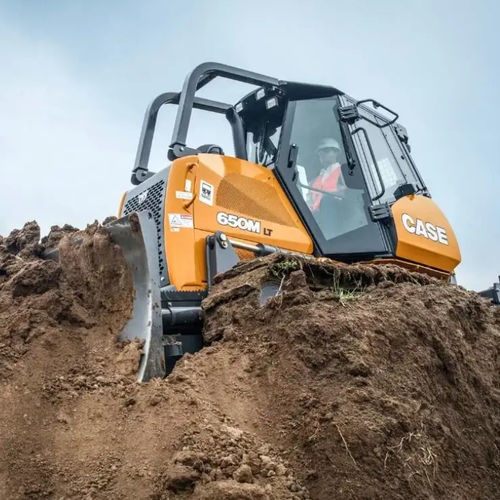

Crawler bulldozer 650M

for construction

Overview
Designed for demanding earthmoving tasks, the CASE 650M dozer combines a compact footprint with strong push/pull capability and fine grading precision. With 74 hp (55 kW) and a push force of 39,086 lb, the 650M is intended for contractors needing high productivity in tight or varied jobsite conditions. The operator environment reduces vibration and improves visibility with floor-to-ceiling door glass and a sloped hood. Blade controls have been upgraded to reduce lever effort by 20%.

Quick specifications

• Horsepower: 74 hp | 55 kW
• Operating weight: 15,997 lb | 7,756 kg

Walkaround
Inspect the 650M to see how its balance of undercarriage design, visibility and controls supports fast cycle times and precise machine placement. The ergonomic operator station, enhanced sight lines and simplified control layout help operators work longer with consistent output.

Standard equipment

• Operator environment: ROPS canopy; isolation-mounted controls; single-lever control for speed, steering and direction; vinyl mechanical suspension seat (tilting) with 3 in (76 mm) retractable seat belt; rearview mirror. Optional ROPS cab available with Bluetooth radio and additional rear mirror.
• Engine: FPT F5C (F5HFL463D*G003); Tier 4 Final certified; CEGR + DOC.
• Blade: 52°–60° variable-pitch with integral adjustment tool; single-lever electro-hydraulic control for blade lift, angle and tilt; lever effort reduced by 20%.
• Undercarriage: Hydraulic track adjusters; easy-clean track covers; Sealed and Lubricated Track Chain (SALT); permanently lubricated track and carrier rollers and idlers.
• Telematics: myCASEConstruction 4G Telematics – includes hardware and a 7-year advanced data subscription.

Optional equipment

• Rear mounted equipment: Ripper (5-position with 3 shanks); hydraulic pump with PTO.
• Blades: 96 in (2.29 m) LT; 108 in (2.73 m) LT/WT; 124 in (3.16 m) WT/LGP.
• Other options: Case Max-Life track; front counterweight; severe cold weather package; cold start (CCV heated lines); rear-view camera (cab only).

Warranty
Three-year / 3,000-hour full-machine factory warranty. Includes 7-year advanced myCASEConstruction data subscription.

Technical specifications

• Model: 650M
• Power: 74 hp (55 kW)
• Operating weight: 15,997 lb (7,756 kg)
• Push/pulling power: 39,086 lb
• Blade pitch: 52°–60° variable pitch
• Blade controls: Single-lever electro-hydraulic for lift, angle and tilt; lever effort reduced by 20%
• Engine family: FPT F5C (F5HFL463D*G003) – Tier 4 Final, CEGR + DOC
• Undercarriage features: Hydraulic track adjusters; easy-clean track covers; Sealed and Lubricated Track Chain (SALT); permanently lubricated rollers and idlers
• Cab/Operator features: Roomy cab or ROPS canopy; vibration reduction; floor-to-ceiling door glass; sloped hood for improved visibility; vinyl mechanical suspension seat (tilting) with 3 in (76 mm) retractable seat belt
• Telematics: myCASEConstruction 4G with 7-year advanced data subscription included
• Optional attachments: Ripper (5-position, 3 shank); hydraulic PTO pump; blade widths: 96", 108", 124"
• Warranty: 3-year / 3,000-hour full-machine factory warranty
