Vibratory road roller DV26E

tandemduplexarticulated

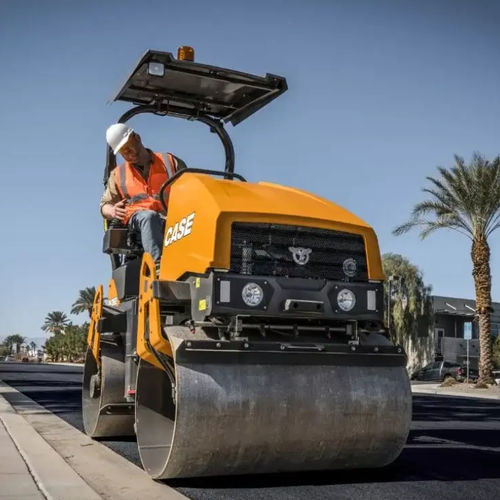

Overview The CASE DV26E is a double drum vibratory roller delivering 33.5 hp (25 kW) and an operating weight of 5,490 lb (2,490 kg). Compared with lighter models, the DV26E provides greater compaction productivity and a wider drum while maintaining a tight turning radius. Improved ergonomics and an enhanced operator interface give direct access to controls. Two drive settings enable precise control for compaction or quick maneuvers. The machine produces high centrifugal forces and features selectable dual vibration frequencies to match specific job needs.

Applications

• Asphalt compaction on roads, pavements and parking areas
• Maintenance, repair and patching in confined sites
• Trench and utility compaction

Quick specifications

• Engine power: 33.5 hp (25 kW)
• Operating weight: 5,490 lb (2,490 kg)
• Water tank capacity: 50.2 gal (190 L)

Standard equipment

• Foldable ROPS
• Articulated chassis
• Vulcollon adjustable scrapers
• Lateral moving suspension seat with foldable arms
• Pressurized water system with 2‑stage filtration and drains
• Dual drum and dual‑frequency vibration with front/dual control and auto vibration stop in neutral

Optional equipment

• Tiltable drum scraper
• Infrared thermometer
• Edge cutter
• Traction assist
• ACE Force intelligent compaction

Warranty

• 1‑Year / Unlimited‑Hour Full‑Coverage Base Limited Warranty
• 2‑Year / 2,000‑Hour Extended Limited Engine Warranty

Characteristics / Technical specifications

• Model: DV26E
• Manufacturer: CASE Construction Equipment
• Engine power: 33.5 hp (25 kW)
• Operating weight: 5,490 lb (2,490 kg)
• Water tank capacity: 50.2 gal (190 L)
• Compaction: Dual drum vibration with selectable dual frequency
• Vibration control: Front/dual drum vibration control; auto vibration stop in neutral
• Chassis: Articulated chassis
• Operator seat: Lateral moving suspension seat with foldable arms
• Scrapers: Vulcollon scrapers (adjustable); optional tiltable drum scraper
