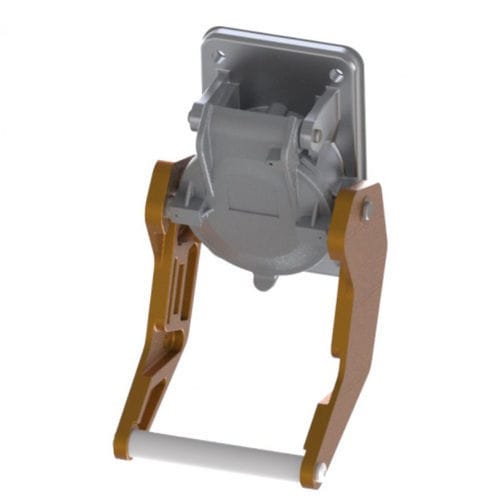

Electrical power supply connector PC5 X5

push-pullmultipolefiber optic

Pin Configuration: • 4-pole: 420A 1,1kV 185mm2, Internal fibre optic \ 350A 7,2kV 150mm2 -> AMP • 5-pole: 320A 1,1kV 185mm2 • 50-pole: 40A 500V 4mm2 Certification: EAC + AMP Model name: X5 Keying position: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 Accessories: External FO 18ch, Internal FO 8ch, Screw terminals, Kirk Key interlock, Wall bracket Plug-in and connect your mobile electrical equipment in the most adverse conditions. Cavotec connectors and power units offer extensive configurations, custom capabilities and numerous interlocked designs that are widely used at ports, mines, tunnel construction sites, steel mills, train applications, and elsewhere; and are certified to ISO9001 and ISO14001. One stop-shop system One stop-shop system with integrated power connectors and power units, pre-assembled and tested with other systems such as cable reels. Durable and reliable Durable and reliable solutions with hot-dipped galvanised or stainless steel AISI316 and MWT (Multi-Way Technology).
