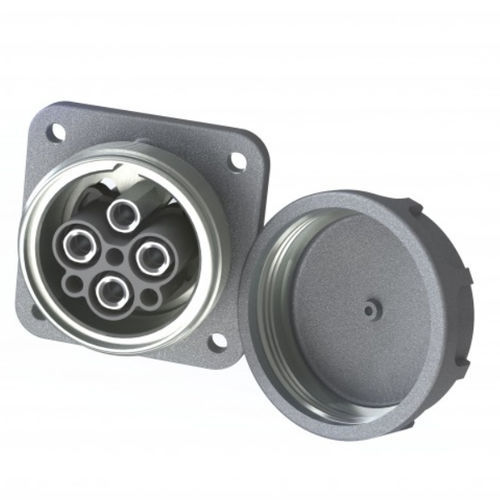

Electrical power supply electrical connector PC5 S5femalemalescrew
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Connection type
- female, male, screw, plug-in
- Electrical characteristics
- 4-pole, 5-pole, high-voltage
- Material
- aluminum, stainless steel
- Product applications
- for marine applications
- Domain
- railway, for mining applications
- Other characteristics
- custom, ISO
- Primary current
320 A, 350 A, 420 A
- Voltage
1.1 kV, 7.2 kV
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 80 °C
(176 °F)
Description
Connection type: Screw Ring
Pin Configuration:
• 4-pole: 420A 1,1kV 185mm2, Internal fibre optic \ 350A 7,2kV 150mm2
• 5-pole: 320A 1,1kV 185mm2
Certification: EAC
Keying position: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Accessories: Internal FO 8ch, Screw terminals
Plug-in and connect your mobile electrical equipment in the most adverse conditions.
Cavotec connectors and power units offer extensive configurations, custom capabilities and numerous interlocked designs that are widely used at ports, mines, tunnel construction sites, steel mills, train applications, and elsewhere; and are certified to ISO9001 and ISO14001.
One stop-shop system
One stop-shop system with integrated power connectors and power units, pre-assembled and tested with other systems such as cable reels.
Durable and reliable
Durable and reliable solutions with hot-dipped galvanised or stainless steel AISI316 and MWT (Multi-Way Technology).
