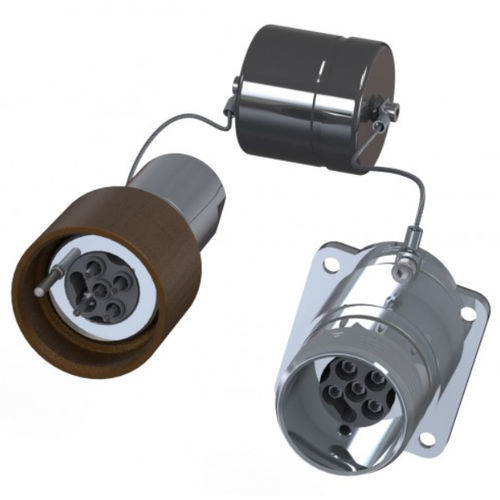

Electrical power supply connector PC1 S1socketplug-inscrew
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Connection type
- socket, plug-in, screw
- Electrical characteristics
- multipole, low-voltage
- Material
- bronze, anodized aluminum
- Product applications
- for drive systems, oil, for motors, for pump, for gas
- Domain
- for the petrochemical industry, for offshore applications, for mining applications
- Protection class
- IP66
- Other characteristics
- IEC
- Primary current
6 A, 10 A, 30 A
- Voltage
230 V, 415 V, 690 V
Description
Pin Configuration:
• 5-pole: 30A 690V 4mm2
• 8-pole: 10A 415V 2.5mm2
• 13-pole: 6A 230V 1.5mm2
Certification: EAC
Keying position: 12
Accessories: Wall bracket
Plug-in and connect your mobile electrical equipment in the most adverse conditions.
Cavotec connectors and power units offer extensive configurations, custom capabilities and numerous interlocked designs that are widely used at ports, mines, tunnel construction sites, steel mills, train applications, and elsewhere; and are certified to ISO9001 and ISO14001.
One stop-shop system
One stop-shop system with integrated power connectors and power units, pre-assembled and tested with other systems such as cable reels.
Durable and reliable
Durable and reliable solutions with hot-dipped galvanised or stainless steel AISI316 and MWT (Multi-Way Technology).
high safety standards
Design-based on high safety standards - IEC 60947, IEC 62271, IEC 60204, SS-EN_61439.
