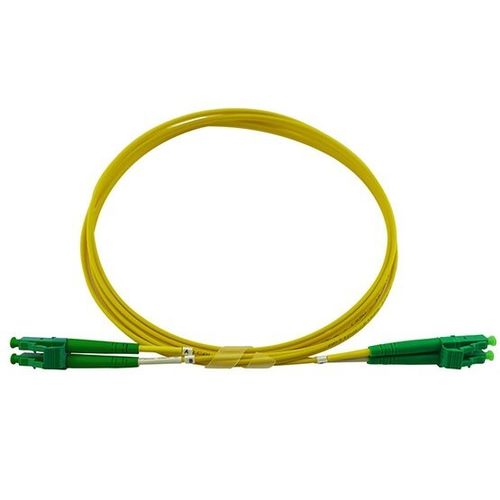

BlueOptics© Duplex Fiber Patch Cord, LC-APC/LC-APC green Single-mode E9/125µm, G.657.A1, OS2, Input Loss: under 0.2dB, Brand Fiber, LSZH yellow, 2.0mm Tube, Ceramic Ferrule, incl. Measurement Protocol
Description
Manufacturers: - CBO
Category: - Fiber Patch Cord LC-LC
Shipping weight: - 0,01 Kg
Product weight: - 0,01 Kg
Medium: - Single-mode
Fiber: - G.657.A1
Original-Vendor: - BlueOptics
Connector-A: - LC
Polish-A: - APC
Connector-B: - LC
Polish-B: - APC
Fiber-Optic-Cable-Construction: - Duplex
Optimal Fiber Connections
BlueOptics© SFP3131BUM Fiber Optic Patch Cord with Duplex LC/APC to LC/APC (8° angled polish) connector and laser-optimizedsingle-mode fiber (SMF) in fiber category Single-mode G.657.A1 (fiber type E9/125µm), with Yellow color.
BlueOptics SFP3131BUM LC/APC-LC/APC Single-mode G.657.A1 Duplex Fiber Optic Patch Cords have a flame-retardant LSZH jacket. BlueOptics SFP3131BUMmulti-mode Single-mode G.657.A1 LC/APC-LC/APC Duplex Fiber Optic Patch Cords are designed for the transmission of 1310nm / 1550nm signals and are suitable forthe connection with patch panel ports or of optical transceivers with each other for example.
Best Attenuation Values
BlueOptics SFP3131BUM multi-mode Single-mode G.657.A1 LC/APC-LC/APC Duplex Fiber Optic Patch Cords have an attenuation value of0.4 dB per kilometer, a low input loss and a high return loss. BlueOptics SFP3131BUM multi-mode Single-mode G.657.A1 LC/APC-LC/APC Duplex Fiber Optic Patch Cords areavailable in 0.5, 1, 2, 3, 5, 7.5, 10, 15, 20, 30 or 50 meter length. Custom lengths are also available on request.
