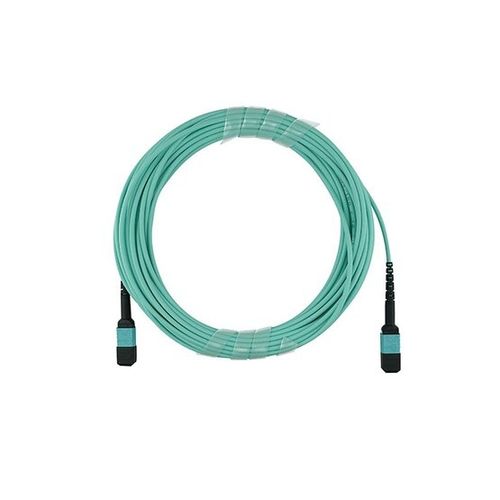

MPO optical cable BlueOptics OM3 12 Cores Type B

multi-fiberIECmultimode

BlueOptics Fiber Trunk Cable, MPO-UPC/MPO-UPC beige,Multi-mode G50/125µm, OM3, Type B, Input Loss: under 0.7dB, Brand Fiber, LSZH aqua, 12 Cores, 3.0mm Tube, Ceramic Ferrule, incl. Measurement Protocol, each without Pins Description Manufacturers: - CBO Category: - MPO-MPO 12 Cores Fiber: - OM3 Medium: - Multi-mode Original-Vendor: - BlueOptics Connector-A: - MPO Polish-A: - UPC Connector-B: - MPO Polish-B: - UPC Optimal Fiber Connections BlueOptics SFP5252EUKB MPO (multi-fiber push-on) trunk cables from CBO, with MPO/UPC to MPO/UPC connection (each without Pins), LSZH (Low Smoke Zero Halogen) sheathing, with 12 cores as multi-mode OM3 Type B variant (Multi-mode fibertype G50/125µm). BlueOptics SFP5252EUKB Multi-mode OM3 MPO Trunk Cables have a flame retardant LSZH sheathing. BlueOptics SFP5252EUKB Multi-mode OM3 MPO Trunk Cables are designed for the transmission of signals around 850nm, are suitable for connecting networking components with each other on optical lanes for example and have a low input loss and a high return loss. All BlueOptics MPO Trunk Cables are accurately designed for the use with BlueOptics MPO cassettes. Fast Installation BlueOptics SFP5252EUKB Multi-mode OM3 MPO Trunk Cables are the simplest to install cabling solution regarding the EN50173-5 and the ISO/IEC 24764 standard and are very comfortable to use compared to conventional fiber optic connections which require splicing. Thanks to the compact design of the BlueOptics SFP5252EUKB Multi-mode OM3 MPO Trunk Cables a rapid creation or extension of a fiber optic installation is possible.
