XY positioning stage
piezoelectric2-axiscompact

XY positioning stage
XY positioning stage
Add to favorites
Compare this product


Characteristics

Orientation
XY
Type
piezoelectric
Number of axes
2-axis
Other characteristics
compact, high-accuracy
Stroke

Min.: 150 µm

Max.: 300 µm

Description

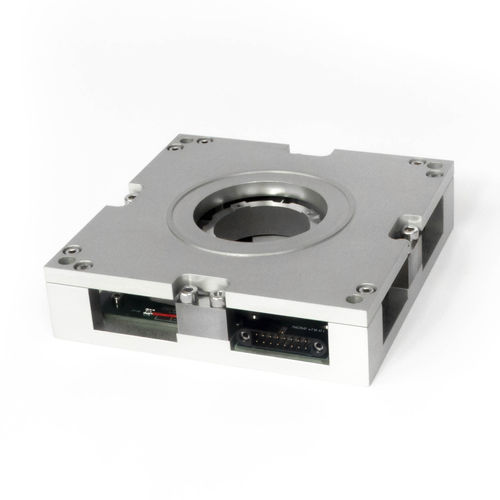

The XY300M-SG stage includes Strain gages (SG) positioning sensors on each axis as well as a SG conditioner embedded on the PCB. This XY300M-SG stage displacement per axis is valid from -40°C to +65°C temperature range.The picture shows the XY300M-SG stage with a metallic cover option not detailed in the interface control document below
