XY positioning stage LSPS35XS
piezoelectric2-axiscompact

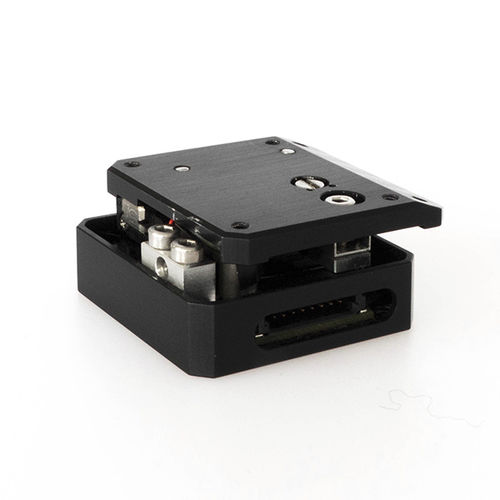

XY positioning stage - LSPS35XS - CEDRAT TECHNOLOGIES - piezoelectric / 2-axis / compact
XY positioning stage - LSPS35XS - CEDRAT TECHNOLOGIES - piezoelectric / 2-axis / compact
XY positioning stage - LSPS35XS - CEDRAT TECHNOLOGIES - piezoelectric / 2-axis / compact - image - 2
XY positioning stage - LSPS35XS - CEDRAT TECHNOLOGIES - piezoelectric / 2-axis / compact - image - 3
Add to favorites
Compare this product

Characteristics

Orientation
XY
Type
piezoelectric
Number of axes
2-axis
Other characteristics
compact, precision
Stroke

Max.: 30 mm
(1.181 in)

Min.: 0 mm
(0 in)

Speed

Max.: 30 mm/s

Min.: 0 mm/s

Description

The Linear Stepping Piezo Stage SPS35XS is created using the Stepping Piezo Actuator's principle. It offers a long stroke combined with a micro/nano positioning resolution. The unit has a maximum load of 5mm. It measures 30*30 mm (X&Y axis). The resolution is 35 with an unloaded resonance frequency of 200 Hz and a response time of 2.50.
