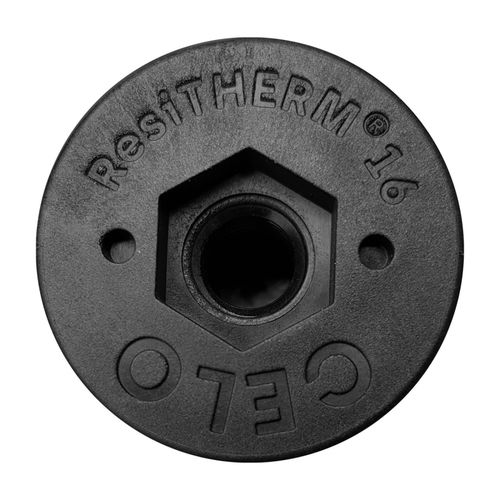

Wall anchor RTH series

ResiTHERM® 16 makes the difference! The innovative product is fast, driving rain tight, thermally separated, corrosion-resistant, ETA-approved, and Made in Germany. The perfect solution for mounting heavy loads to insulated facades without thermal bridges! One product for all insulation types and thicknesses, e.g. bridging insulation thicknesses from 60-300 mm when anchoring in insulated façades made of concrete, or from 60-280 mm in aerated concrete and solid brick, and 60-250 mm when the insulated wall consists of perforated bricks, thus allowing for high application flexibility. It also works in other base materials and for a wide range of applications such as awnings, canopies, French balconies, satellite dishes, air-conditioning units and much more. The black thermal separation module eliminates heat bridges efficiently and protects against mould and heat loss. Its pre-assembled, weather-resistant EPDM sealing ensures safe sealing against driving rain up to wind force 11(violent storm) and up to 3 mm displacement, tested for watertightness based on DIN EN 1027. Discover the time and cost savings due to simple and quick installation while ensuring the highest quality: No risk of corrosion due to high steel quality 8.8, attachment parts made of stainless steel A4 and glass-fibre reinforced nylon, which is characterised by ageing, weather, and UV-resistance. The possibility of subsequent adjustment of the screw-in depth of the M12 threaded stud as well as the M16 threaded rod allows adjustment to the individual installation situation. ResiTHERM® 16 is available in two versions: zinc-plated or A4.
