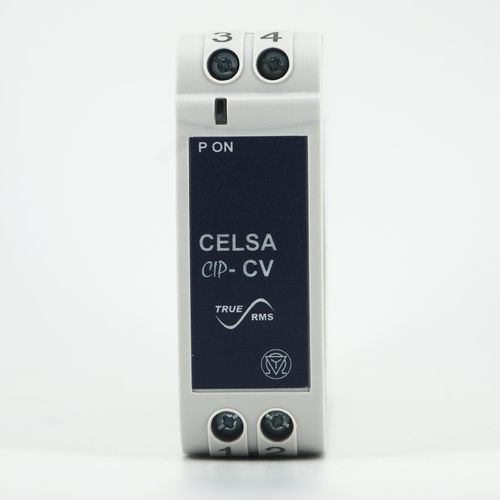

DIN rail transducer CIP-CA-CV

AC voltageAC/DC

The transducer CIP-CA / CIP-CV convert a sinusoidal AC current or AC voltage into load independent DC current or a load independent DC voltage proportional to the measured value. Type - voltage / current Class - 0.2 Dimensions - 65.5 x 22.5 x 100.5 mm • Arithmetical mean value measurement: Calibration to RMS with sine waveform (average value) • Accuracy class 0.2 as per International Standard IEC/EN 60 688. • Auxiliary power supply: 40 V-300 V AC/DC. or 24 V-60 V AC/DC. • Output Response Time < 250 ms. • Fast and easy installation on DIN RAIL or onto a wall or in panel using optional screw hole bracket. Application The transducer CIP-CA / CIP-CV convert a sinusoidal AC current or AC voltage into load independent DC current or DC voltage proportional to the measured value. Mode of operation Input signal X is separated from the mains network by using a transformer. The signal is rectified and filtered in rectifier unit. The transformation properties of the measuring transducer are determined in the succeeding characteristics circuit. The output amplifiers transforms the measuring signal into an impressed output signal Y. The circuit is supplied with Auxiliary supply H or L.
