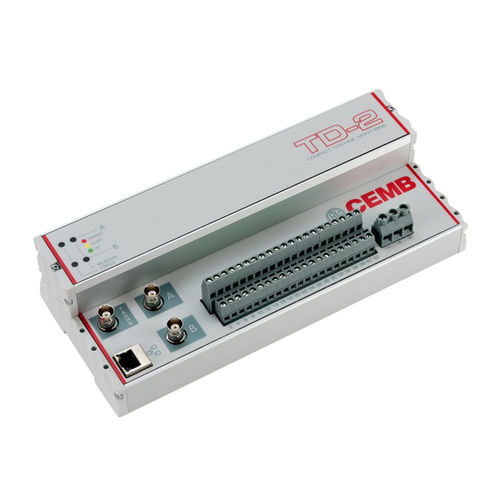

Vibration monitoring system TD-2

conditionEthernetIP

Dual-channel Condition Monitoring System and protectionTD-2 Condition monitoring system is designed for control, continuous monitoring and protection of any rotating machines. It can read any type of vibration sensors, Piezo IEPE or ICP, Electrodynamic Velocimeters or Proximitors. It manages all the CEMB sensors and can be configured for each range of sensor of any manufacturer. TD-2 interfaces with a supervision system either through 4-20 mA outputs or with connectivity MODBUS TCP-IP and it is designed to be connected to an ETHERNET network with others TD-2 or by the TDSP multi-channel system and export the data for remote vibration analysis and machine status TD-2: LED INDICATORS FOR STATUS OF CHANNELS Threshold and alarms – Diagnostic BNC Input signals replicated on the BNCs for analysis with portable systems N130, N330, N600 ETHERNET PORT FOR COMMUNICATION System Conguration – Data Export & Analysis – Balancing 2X ANALOG OUTPUT 4-20mA configurable or 0-10V configurable 2X BINARY INPUT – Trip multiplier – Trip bypass 6X RELAY Configurable relay – NO/NC – With/Without memory – Setting time – Triggering condition AND/OR KEY-PHASOR Proximitor or photocell TCP/IP MODBU
