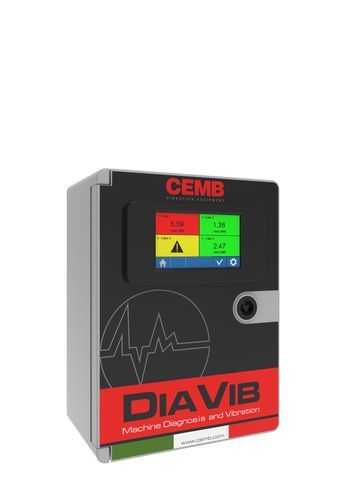

Vibration monitoring system DIAVIB

condition with diagnosticsmachine conditionacceleration

Overview
Measurement-based vibration monitoring system for detecting anomalies, optimising maintenance, improving process efficiency and reducing machine downtime.

Available configurations

• PROVIB – L (Local unit) manages up to 8 tri-axial CUBE sensors
• PROVIB – M (Master unit) manages up to 5 local units with 24 CUBE sensors in total
• PROVIB – C (Combi unit) combines the functions of a Local and a Master unit

Benefits

• Easy installation: minimal wiring and no additional software or licences required
• Compact, modular and flexible: adaptable to plants of varying size and configuration
• Operational efficiency: reduces downtime and maintenance costs, improving overall productivity
• Security: data protection with encrypted keys, secure protocols and multi-level access

Technical data (summary)
PROVIB - L
Dimensions (mm): 330 x 250 x 130
Environmental: IP 65, ABS/Polyester - outdoor use, not direct sun
Power: 110-230 VAC (1 A)
Managed CUBE sensors: 8 (local)
Local units managed: -
Ethernet ports: 1 (LAN)
EDGE computing: -
Local data storage: -
Web Dashboard: -
Cloud access: -
Wireless communication: -
Touch Panel Display (Optional): 4.3” (for local CUBE) Real time values - Trend (last 24h)
Additional functions: Machine diagnostics - Alarm management - CUBE configurations

PROVIB - M
Dimensions (mm): 400 x 300 x 190
Environmental: IP 65, ABS/Polyester - outdoor use, not direct sun
Power: 110-230 VAC (3 A)
Managed CUBE sensors: 24 (remote)
Local units managed: 5
Ethernet ports: 2 (LAN-WAN)
EDGE computing: Yes (AL300)
Local data storage: 4 GB RAM + 8 GB FLASH (expandable)
Web Dashboard: Advanced vibration analysis - Trend - FFT Waterfall - Machine diagnostics
Additional functions: Alarm management - Statistics - Data export and backup
Cloud access: Yes, available by subscription (same interface as Web Dashboard)
Wireless communication: Wi‑Fi - 3G/4G modem (optional)
Touch Panel Display (Optional): -

PROVIB - C
Dimensions (mm): 400 x 300 x 190
Environmental: IP 65, ABS/Polyester - outdoor use, not direct sun
Power: 110-230 VAC (3 A)
Managed CUBE sensors: 24 (including up to 8 local)
Local units managed: 5
Ethernet ports: 2 (LAN-WAN)
EDGE computing: Yes (AL300)
Local data storage: 4 GB RAM + 8 GB FLASH (expandable)
Web Dashboard: Advanced vibration analysis - Trend - FFT Waterfall - Machine diagnostics
Additional functions: Alarm management - Statistics - Data export and backup
Cloud access: Yes, available by subscription (same interface as Web Dashboard)
Wireless communication: Wi‑Fi - 3G/4G modem (optional)
Touch Panel Display (Optional): 4.3” (for local CUBE) Real time values - Trend (last 24h)

Notes
Cable glands are supplied loose and must be fitted by the installer.
For modem variants, SIM card is not included and must be provided by the customer.

Features / technical specifications

• Protection rating: IP 65 (ABS/Polyester), suitable for outdoor use but not for direct sunlight exposure
• Power supply: 110-230 VAC (varies by version, e.g. 1 A for L, 3 A for M/C)
• Sensor capacity: from 8 (local) up to 24 (remote/total) depending on configuration
• Networks: Ethernet ports (1 for L; 2 LAN-WAN for M/C), Wi‑Fi and optional 3G/4G modem
• Edge computing: included in M and C versions (AL300 module)
• Local storage: 4 GB RAM + 8 GB FLASH (expandable) in M and C
• Web Dashboard: advanced vibration analysis, trend, FFT waterfall, machine diagnostics, alarm management, statistics, data export and backup (full features on M/C)
• Cloud access: available by subscription (same interface as Web Dashboard)
• Optional touch display: 4.3” for local real-time values and trends (last 24h)
