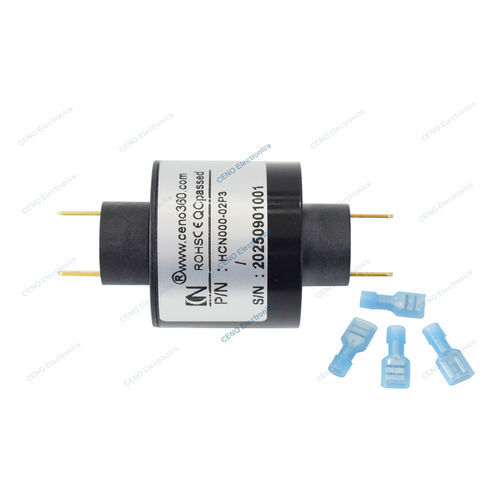

Electric slip ring HCN000-02P3

flatfor cable reelsindustrial

Product overview
HCN000-02P3 is an insert-type slip ring with flat-pin contacts that provides a compact, cost-effective rotary electrical connection. The flat-pin insert format simplifies integration in limited-space assemblies and replaces wire-based contacts to provide stable electrical contact. HCN series units comply with RoHS and are commonly used on assembly-line equipment, cable reels and other industrial rotating modules.

Technical specifications

• Model: HCN000-02P3
• Circuits & Current: 2 circuits × 15A
• Rated voltage: 0 ~ 240 VAC/VDC
• Dielectric strength: ≥500 VAC @ 50 Hz
• Insulation resistance: ≥100 MΩ @ 500 VDC
• Contact resistance: ≤ 10 mΩ
• Operating temperature: -20°C to +80°C
• Operating humidity: 60 % RH
• Rotational speed: 0 to 400 rpm
• Contact material: Precious metal
• Housing material: Engineering plastics

Applications & advantages

• Designed for compact rotating assemblies and installations with limited space
• Typical uses: assembly lines, cable reels, rotating sensors and instrumentation
• Flat-pin contacts facilitate mounting and ensure a stable electrical interface

Compliance & options

• RoHS compliant
• Standard construction: precious-metal contacts and engineered-plastic housing
• Customization available on request: cable length, connector type, mounting features
• Reference model: HCN000-02P3
