Fixed shoring tower MULTICETA

modularfacade

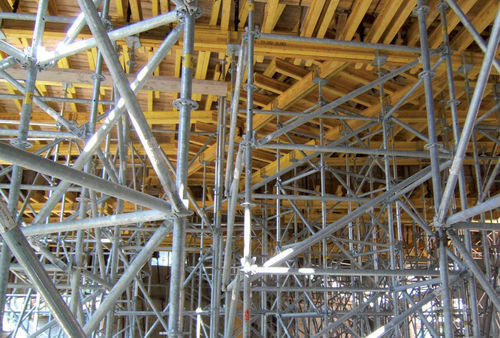

MULTICETA SYSTEM SUPPORT STRUCTURES Multidirectional scaffolding with crosshead spindles, wooden beams and UPN supporting ledgers allows for the construction of high-capacity support structures of significant heights. The size of the support scaffolding can be varied in accordance with work site requirements and capacities. MULTICETA SUPPORT SCAFFOLDING System MULTICETA multidirectional scaffolding support structure combined with crosshead spindles, wooden beams and metal braces. MC MaterialS235JR, S355JR steel MC TubesDiameter 48.3 mm Nominal thickness 3.2 mm MC Finish Hot-dip galvanised coating in accordance with UNI EN ISO 1461 MC WeldingIn accordance with regulations UNI EN ISO 15607 and UNI EN 1418 Wooden beams TI 20Double T h. 20 cm Metal braces PI 10Double galvanised UPN h. 10 cm Maximum load capacityMay vary between 30 kN and 50 kN according to whether the vertical diagonal braces are positioned every metre or every 2 metres.
