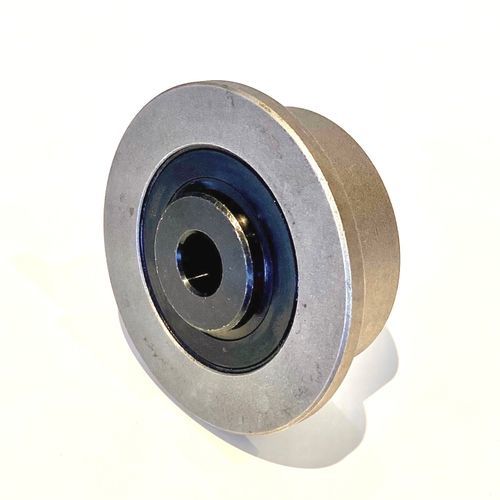

Flanged wheel type roller 0.2886 series
conveyinghandlingsteel

flanged wheel type roller
flanged wheel type roller
flanged wheel type roller
Add to favorites
Compare this product


Characteristics

Type
conveying, handling
Material
steel
Applications
for conveyors, for the automotive industry, for chains, for conveyor belts
Other characteristics
with ball bearing, for heavy loads, flanged
Outer diameter

80 mm
(3.15 in)

Inside diameter

17 mm, 25 mm
(0.67 in, 0.98 in)

Width

Min.: 28 mm
(1.1 in)

Max.: 36 mm
(1.42 in)

Load capacity

1,200 daN

Description

CGR’s flanged bearings all have standardized dimensions but a specific choice of steel, as well as treatments and greases. They are used in delivery systems for heavy loads, both ground-based or overhead ( conveyor chains roller chains, lifting chains and tower cranes …). As a manufacture of made-to-order products, we can also provide you with several variations on the drawings laid out below.
