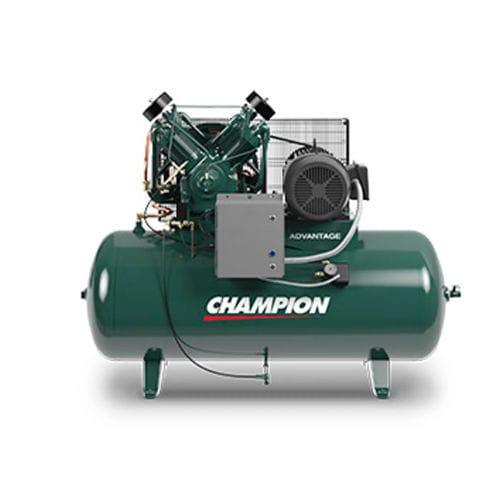

Reciprocating compressor PL series

airelectricstationary

Two Stage, Pressure Lubricated (3-30 HP) Reciprocating Air Compressor Champion PL-Series pressure lubricated compressors have a time-tested, proven design. Rugged standard features, a wide selection of configurations, and quality available options make the PL-Series compressors the solution to your application. They deliver high performance, long life and tremendous value. Champion compressors are the proven choice. Specifications and Features 3 - 30 hp Up to 250 psig 9.7 - 202 acfm at 175 psig on Electric Driven units Tank or Base Mounted, Simplex, Duplex and Engine Driven Models Two-Stage pressure lubricated pumps Loadless auto stop/start 3-year Pump Warranty and 1-year Package Warranty Factory filled with AEON lubricant Standard Features Load-less starting (via hydraulic unloader) for lower energy costs and less wear on drive motor ASME inter-stage pressure relief valve for protection ODP NEMA 1760 RPM electric motor 10 Micron industrial grade intake filter ASME coded receiver 0-300 PSIG air pressure gauge on tank Available voltages Single phase-115/208-230 Three phase-208/230/460/575 Available Options Multiple tank sizes and variations Electric or engine driven NEMA 4 full-voltage starter upgrade ODP HE/TEFC/TEFC HE motor upgrades Control panel upgrades Aftercooler Air-cooled with or without moisture separator - Water-cooled with or without moisture separator Low oil level monitor (NEMA 1 or 4) Low oil pressure switch (NEMA 1 or 4) Dual control Vibration isolators Synthetic lubricant High temperature switch (NEMA 1 or 4)
