Reciprocating compressor Revolution

airelectricstationary

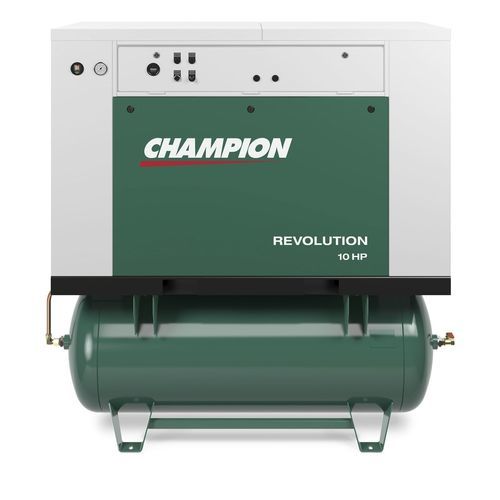

Overview The Revolution Quiet Enclosed Reciprocating compressor integrates the proven R-Series pump into a fully enclosed package engineered for optimal cooling and reduced sound levels. Ideal where reciprocating-compressor performance is required but lower noise and compact installation are priorities. The design can deliver sound levels comparable to rotary-screw compressors and approach approach temperatures below 20° F.

Standard Features

• Quiet enclosed cabinet with 2" foam on external panels (B11.19 compliant)
• Legendary R-Series reciprocating pump
• ASME inter-stage pressure relief valve
• ODP NEMA electric motor, 1760 RPM
• 10-micron industrial intake filter
• ASME coded receiver with 0–300 PSIG tank gauge
• Available voltages: Single phase 208–230; Three phase 208/230/460/575; 50 Hz options

Package Benefits

• Control panel with power-on light, fault indicator, hour meter and ON/OFF switch
• Very low sound levels—as low as 62 dBA
• Bottom intake and discharge for improved sound attenuation
• Operable with doors on (fully enclosed) or doors off for increased airflow
• B11.19 compliant enclosure
• Optional mounted refrigerated dryer to save footprint and installation cost
• 2" external foam panels for additional attenuation
• Over-sized bar-and-plate after-cooler for efficient cooling
• Large cooling fan for optimum airflow
• Electronic tank drain and high-temperature switch
• Food-grade oil available

Pump Benefits

• Multi-finned cylinders for lower operating temperatures
• Integral cylinder/head design for reliable operation
• Balanced pistons and lightweight two-piece connecting rods
• Piston rings for oil control and high efficiency
• Pressure relief valves and large-diameter finned intercoolers
• Optimized cooling fan/flywheel and reliable high-flow disc valves
• Tapered roller main bearings, balanced crankshaft and large cast-iron crankcase
• Centrifugal unloader for minimized starting power and load-less starting

Performance — PUMP MODEL R-15B (REVOLUTION 5–15 HP SIMPLEX UNITS)
MOTOR HP | TANK CAPACITY (GAL) | PACKAGE MODEL NUMBER | DIMENSIONS L x W x H (IN) LESS DRYER | DIMENSIONS L x W x H (IN) WITH DRYER
5 | - | BQR5 | 61 x 32 x 45 | -
5 | 80 | HQR5-8 | 70 x 32 x 64 | 71 x 32 x 64
7.5 | - | BQR7F | 61 x 32 x 45 | -
7.5 | 80 | HQR7F | 70 x 32 x 64 | -

Performance — PUMP MODEL R-30D (REVOLUTION 10–15 HP SIMPLEX UNITS)
MOTOR HP | TANK CAPACITY (GAL) | PACKAGE MODEL NUMBER | DIMENSIONS L x W x H (IN) LESS DRYER | DIMENSIONS L x W x H (IN) WITH DRYER
10 | - | BQR10 | 68 x 33 x 50 | -
10 | 120 | HQR10-12 | 76 x 33 x 74 | 93 x 33 x 71
15 | - | BQR15F | 68 x 33 x 50 | -
15 | 120 | HQR15F-12 | 76 x 33 x 74 | 93 x 33 x 71

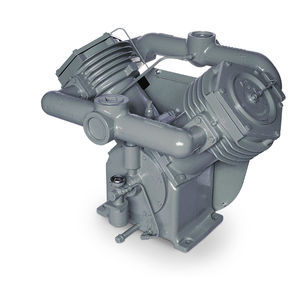

Bare Pumps — R-SERIES RECIPROCATING COMPRESSOR
MODEL | # OF CYLINDERS | BORE DIA. (IN) | STROKE (IN) | OIL CAPACITY (QTS)
R-15 | 2 | 4.63 x 2.5 | 3 | 2
R-30 | 4 | 4.63 x 2.5 | 3 | 4

Downloads Product brochure available (PDF specification sheet for 5–15 HP Quiet Enclosed Reciprocating Air Compressors).

Specifications / Technical data

• Enclosure: Quiet enclosed package with 2" external foam panels (B11.19 compliant)
• Pump series: R-Series (models include R-15, R-30)
• Sound level: as low as 62 dBA
• Approach temperature: less than 20 degrees
• Motor: ODP NEMA, 1760 RPM (single and three phase options)
• Available voltages: Single phase 208–230; Three phase 208/230/460/575; 50 Hz options
• Intake filter: 10 micron industrial grade
• Inter-stage protection: ASME inter-stage pressure relief valve
• Receiver: ASME coded receiver with 0–300 PSIG tank gauge
• Cooling: over-sized bar & plate after-cooler and large cooling fan
• Controls: control panel with power-on light, fault light, hour meter and ON/OFF switch (standard)
• Additional features: electronic tank drain, high-temp switch, food-grade oil
