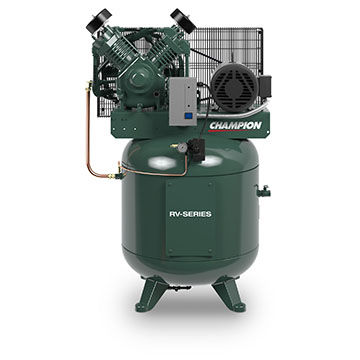

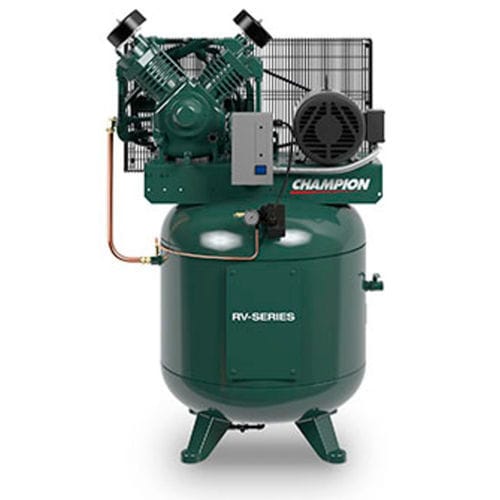

Reciprocating compressor RV series
airelectricstationary

reciprocating compressor
reciprocating compressor
reciprocating compressor
reciprocating compressor
reciprocating compressor
Add to favorites
Compare this product


Characteristics

Technology
reciprocating
Type
air
Power source
electric
Portability
stationary
Lubrication
lubricated
Application domain
industrial
Other characteristics
tank-mounted, two-stage, vertical, horizontal
Pressure

Min.: 125 psi

Max.: 175 psi

Flow

Min.: 4.5 ft³/min
(0.13 m³/min)

Max.: 48.1 ft³/min
(1.36 m³/min)

Power

Min.: 2 ch
(2 hp)

Max.: 15 ch
(15 hp)

Description

Two Stage, Splash Lubricated (2-15 HP) Reciprocating Air Compressor The Champion RV Series compressor is engineered to deliver industrial-rated dependability at an affordable price. The RV line offers maximum installation versatility. Each compressor features durable cast-iron construction, industrial grade filter and silencer and alloy steel reed valves. Specifications and Features 2-15 HP 125-175 PSIG 4.5-48.1 CFM at 175 PSIG rating Tank Mounted Vertical Configuration with R-10/R-15 Pump Horizontal Configuration Option with R-30 Pump Two-Stage, Splash Lubricated Compressor Pump Automatic Start/Stop Operation Factory filled with ChampLub AC lubricant 13 HP gas engine compressor/generator model available Standard Features Automatic Start/Stop Operation Magnetic Starter* ASME Coded Receiver NEMA Rated Electric Motors 0-300 PSIG Air Pressure Gauge on Tank Preset Pressure Switch Available Voltages *Single Phase-208, 230 on 2 HP through 7.5 HP with R-10 and R-15 Pump *Three Phase-208, 230, 460, 575 on 7.5HP through 15 HP with R-30 Pump Available Options Pneumatic Tank Drains Vibration Isolators Low Oil Level Monitor Air-Cooled After-coolers *Options not available on 5 HP 3600 RPM motor Special alloy steel reed valves with self-cleaning valve design maintain peak performance throughout the life of the compressor Cast iron cylinders and heads offer industrial-rated, rugged dependability Industrial grade intake filter and silencer Oil level site glass for easy monitoring
