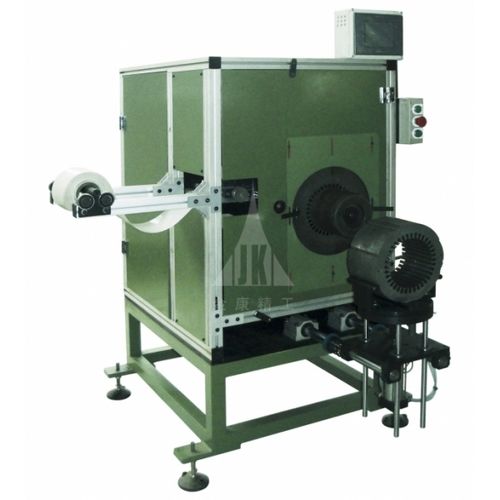

Slot insulation machine CZ05

Slot insulation machine - CZ05 - Changzhou New District JinKang Precision Mechanism
Slot insulation machine - CZ05 - Changzhou New District JinKang Precision Mechanism
Add to favorites
Compare this product

Characteristics

Production time

Min.: 0.6 s

Max.: 1 s

Overall length

1,500 mm
(59 in)

Overall width

1,200 mm
(47 in)

Weight

600 kg
(1,323 lb)

Description

SLOT INSULATION MACHINE(HORIZONTAL/SINGLE SLOT SHAPE) • Stator stack height : 10mm-180mm • Max. Stator O.D. : φ210mm • Stator I.D. range : 40mm-φ140mm • Height of edge folded : 3mm-7mm • Max. thickness of insulation paper : 0.15mm-0.35mm • Paper feeding length : 15mm-42mm • Tact time : 0.6-1s/slot • Air pressure : 0.4-0.7MPa • Power supply : 380v/ 50Hz Three-phase four-wire • Power : 1.5Kw • Dimension (L*W*H) : 1500mm * 1200mm * 1650mm • Weight : ≈600kg
