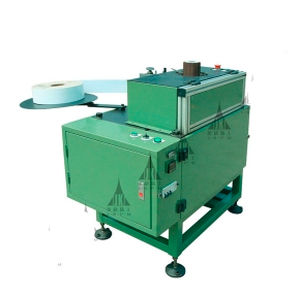

Slot insulation machine CZ02

Slot insulation machine - CZ02 - Changzhou New District JinKang Precision Mechanism
Slot insulation machine - CZ02 - Changzhou New District JinKang Precision Mechanism
Slot insulation machine - CZ02 - Changzhou New District JinKang Precision Mechanism - image - 2
Slot insulation machine - CZ02 - Changzhou New District JinKang Precision Mechanism - image - 3
Slot insulation machine - CZ02 - Changzhou New District JinKang Precision Mechanism - image - 4
Add to favorites
Compare this product

Characteristics

Stator height

Min.: 10 mm
(0 in)

Max.: 100 mm
(4 in)

Production time

0.5 s

Overall width

1,100 mm
(43 in)

Description

Stator stack height:10mm-100mm; Max. Stator O.D.:φ200mm; Stator I.D.range:φ17mm-φ90mm • Stator stack height : 10mm-100mm • Max. Stator O.D. : φ200mm • Stator I.D.range : φ17mm-φ90mm • Height of edge folded : 2mm-5mm • Max. thickness of insulation paper : 0.15mm-0.3mm • Paper feeding length : 12mm-40mm • Tact time : 0.4-0.5 s/slot • Air pressure : / • Power supply : 380v/ 50Hz Three-phase four-wire • Power : 0.75Kw • Dimension(L*W*H) : 960mm *1100mm * 900mm • Weight : ≈250kg
