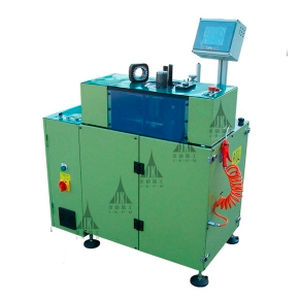

Slot insulation machine CZ06
Add to favorites
Compare this product
Characteristics
- Stator height
Min.: 10 mm
(0 in)Max.: 120 mm
(5 in)- Production time
0.5 s
- Overall width
1,200 mm
(47 in)- Weight
350 kg
(772 lb)
Description
SLOT INSULATION MACHINE(MULTI-SLOT SHAPE)
Stator stack height:10mm-120mm; Max. Stator O.D.:φ200mm; Stator I.D.range:φ17mm-φ120mm
• Stator stack height : 10mm-120mm
• Max. Stator O.D. : φ200mm
• Stator I.D.range : φ17mm-φ120mm
• Height of edge folded : 2mm-5mm
• Max. thickness of insulation paper : 0.15mm-0.3mm
• Paper feeding length : 12mm-40mm
• Tact time : 0.4-0.5 s/slot
• Air pressure : 0.4-0.7MPa
• Power supply : 380v/ 50Hz Three-phase four-wire
• Power : 1.0Kw
• Dimension(L*W*H) : 960mm *1200mm * 900mm
• Weight : ≈350kg
VIDEO
