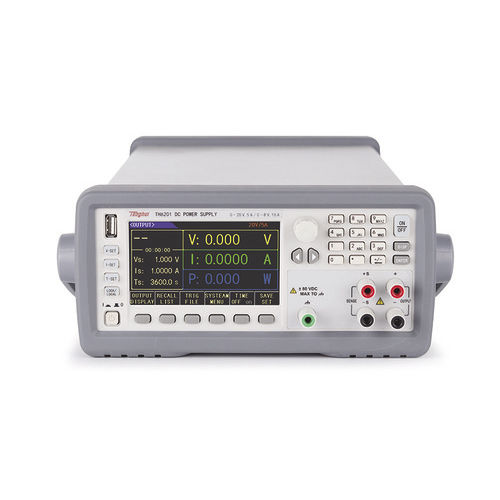

AC/DC power supply TH6201

variable-outputlinearlaboratory

Linear Programmable DC power supply Rated Voltage/Current/Power: Range 1: 20V/5A/100W Range 2: 8V/10A/80W Features ■ Fresh and simple system settings with Chinese and English operation interfaces ■ High resolution: 24-bit color 4.3-inch TFTLCD, resolution: 480 x 272 ■ Linear design and double range output ■ High precision and high stability, low ripple and low noise ■ 1/2 2U super mini size and output and sampling terminal on the front and rear panel ■ Powerful programming ability 100 groups of setting state memory saving and calling 10 trigger files, 100 test sequences per file, loop output of programming ■ Timing output: time (0.1-99999.9s) ■ Use rotary knob and numeric keyboard to set the voltage,current and output time ■ Panel function button with backlight display ■ Remote measurement function, compensation for line voltage drop ■ Output control switch ■ Copy screen function ■ Over voltage, over current protection ■ Intelligent temperature control fan ■ Support standard SCPI communication protocol ■ Software monitoring via computer Upgrade instrument firmware via USB flash Application ■ R & D and design verification common test ■ Production line table routine testing and maintenance ■ Automated device integration testing ■ Solar photovoltaic simulation test ■ New power car simulation test ■ Teaching laboratory
