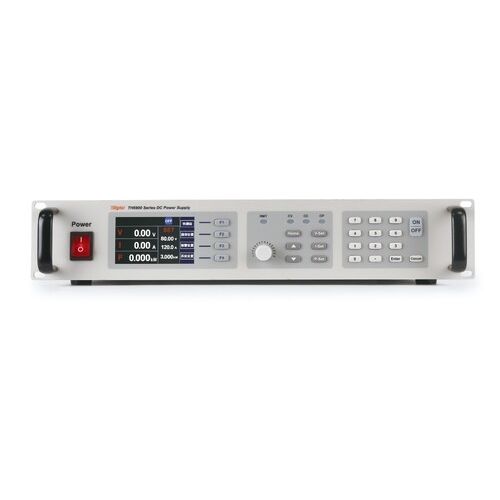

AC/DC power supply TH69360-15

single-outputswitchingrack-mount

Features ■ Rated Output: 360V/15A/1500W ■ The output range is 3 times of the equal power "rectangular" power supply ■ High frequency LLC multi-resonant inverter, the efficiency of the whole machine is as high as 93% ■ Active PFC, power factor up to 0.99 ■ High resolution, high precision; low ripple, low noise ■ ≤2ms fast transient response ■ The rising edge and falling edge speed of the output are adjustable ■ Power supply constant voltage (CV), constant current (CC), constant power (CP) mode ■ The master-slave mode supports parallel connection, active current sharing, and parallel connection of up to 10 units of the same type ■ OVP, OCP, OPP, OTP, input undervoltage protection, SENSE terminal reverse connection protection ■ Built-in function generator ■ Equipped with discharge circuit (Uout< 10V within 1s) ■ Separate control of power output through external analog interface ■ High-brightness color LCD display ■ Flexible and powerful sequence test function ■ Support SCPI command language ■ Interface: RS232, USB HOST, Optional (RS485, CAN, GPIB, LAN, analog control interface) Brief Introduction TH6900 series is a programmable switching DC power supply with a wide range of output. There are 21 models of 750W, 1500W and 3000W available. The instrument supports up to 10 master-slave units of the same model in parallel to meet higher output current and output power requirements. TH6900 series supports sequence test function, allowing users to set a series of voltage, current, power, and automatically output according to the set rules, to better meet the user's application of automatic test and burn-in test.
