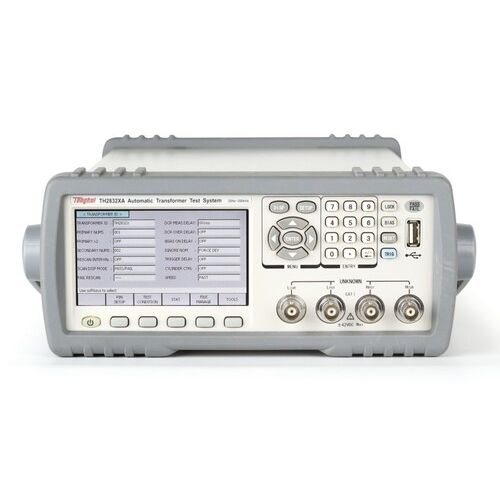

Resistance testing device TH2832XA

capacitanceautomatictransformer

Basic Accuracy: 0.05%. Frequency: 20Hz-200kHz AC signal: 10mV-2V/100uA-20mA DC Bias Current Source 0+/-5V, 0+/-50mA Features ■ Number of Test PIN: 24 ■ Frequency: 20Hz-200kHz, 15025 points ■ Signal Level: 10mV-2Vrms, 100μA—20mArms; 20mV-1Vrms, 200μA—10mArms ■ Test Speed: max. 40ms ■ 4.3 inch TFT LCD Display ■ Brand new interface design ■ built-in 0 - ± 5V/50mA bias source ■ TH2832XA: LCR + transformer test system TH2832XB: transformer test system TH2832XC: transformer test system ■ Discrete passive component (L, C, R) multipass scan test ■ Switch transformer scan test ■ Network transformer scan test ■ Relay drive coil, contact resistance multi-channle scan test ■ Multi-channel DCR scan test ■ Singel parameter loop test ■ Scan fixture relay action times review ■ Flexible deviation deduction method ■ Self-test scanning fixture relays ■ Storage: Internal: 100 groups of settings file to save; U disk: large capacity of configuration files, CSV ; format test data, and GIF format images ■ Firmware update through U disk ■ Optional PC-level instrument test setup file programming capability ■ Parameter setting file is compatibe with TH2829AX-24 ■ RS-232, USB DEVICE interface ■ Work with TH1831 24-pin transformer scanning fixture
