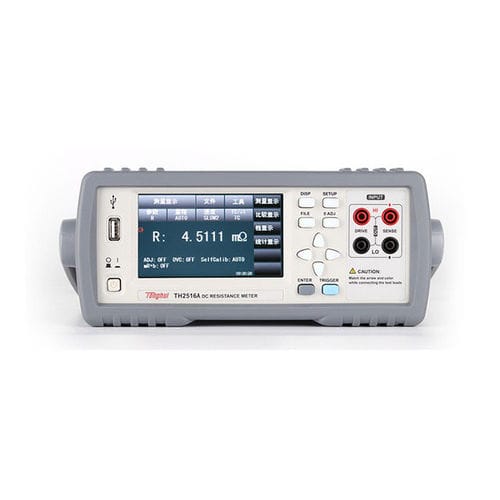

Digital ohmmeter TH2516A

bench-top4-wirelow-resistance

DC Resistance Meter Basic Accuracy: 0.05% Test Range 10uΩ-200kΩ 4 1/2 Colorful LCD Touch Display. Features ■ Maximum resistance accuracy: 0.05% ■ Temperature accuracy: 0.2℃ ■ Minimum resolution: 1uΩ ■ Low-resistance test mode can effectively protect DUT ■ Multiple measurement combinations of R, LPR, T ■ 24 bits, 4.3-inch and 4-wire touch LCD screen ■ LCD resolution: 480×272 ■ Temperature compensation(TC) ■ Temperature conversion(Δt) ■ Maximum sample rate: 50samps/sec ■ Offset voltage compensation (OVC) ■ Customer self-correction(0 ADJ) ■ Simultaneously output compare results of 3 bins(OVER, PASS and BEEP) ■ Statistics function: CpK, Cp ■ 30 groups of parameter files can be saved and loaded ■ Screen information can be stored on U-disk ■ Data save function brings convenience for saving measurement result ■ Automatically update operation software through USB HOST ■ Operation languages: Chinese and English ■ Flexible and convenient file operation system ■ Handler interface realizes on-line operation ■ Achieve data communication with PC and remote control through interfaces such as RS232, USB HOST, USB Device
