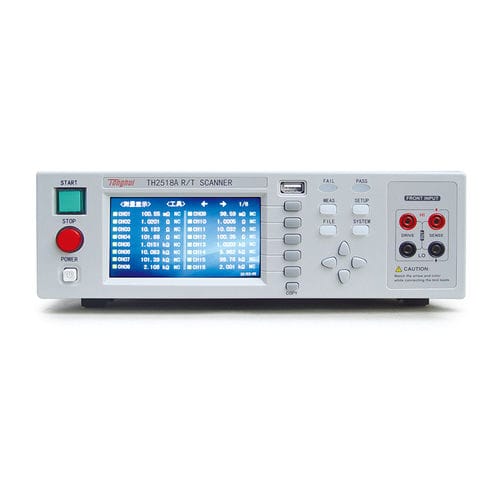

Digital ohmmeter TH2518A

bench-toplow-voltage

DC Resistance Meter Basic Accuracy: 0.05% Test Range 10uΩ-200kΩ 16 Channels(Option 90 Channel) Features ■ 4.3 inch 24-color touch LCD screen with 480 × 272 resolution ■ Chinese and English optional operation interface ■ Up to 90-channel resistance/temperature scan tests ■ Support 6 units for free insertion and removal, simultaneous measurement between test units ■ Maximum test speed can reach 600 times / sec ■ Maximum resistance accuracy: 0.05%, minimum resolution: 10uΩ ■ Basic temperature accuracy: 0.2 °C ■ The adopted test end of the scan test channel is programmable ■ Compatible with scanning and stand-alone measurement modes ■ Temperature measurement can support PT100, PT500 and analog voltage three temperature sampling methods ■ Temperature compensation function (TC) ■ One-click screen capture function ■ Data logging function ■ Automatic upgrade of instrument operating software via USB HOST ■ Comparison sort results of channel, board and machine-level can be output ■ Handler interface for online operations Application ■ Components Resistor, inductor, transformer, motor, relay, circuit solder joint,capacitor riveting point ■ Cables, connectors Strand wire, connectors, switches ■ Material
