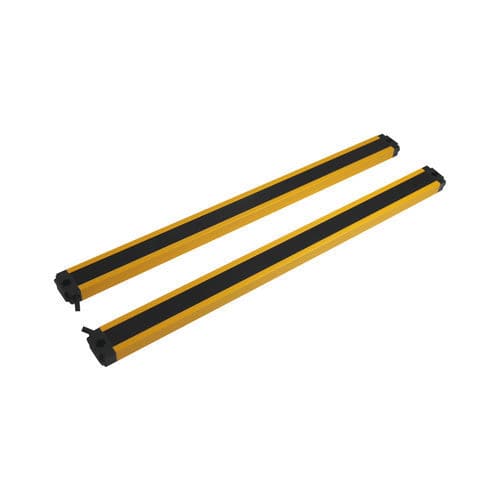

Type 2 safety light curtain CSF05-T0272DP2-Amultibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- type 2 safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65
- Operating range
Min.: 1 m
(3'03" )Max.: 2 m
(6'06" )
Description
Product
Main features
Technical specifications
Mechanical / electrical parameters
Recommended applications
Characteristics / technical specifications
- Model: CSF05-T0272DP2-A
- Series: CSF series safety light curtain
Main features
- Type: front slim profile
- Detection range: 0–2 m
- Detection principle: through-beam (opposed)
- Output: PNP NC
- Supply voltage: DC 24 V
- Ingress protection: IP65
Technical specifications
- Number of beams: 72
- Beam pitch: 5 mm
- Protected height: 355 mm
- Cable length: 0.5 m
- Synchronization: optical sync
- Accessories: user manual, certificate, mounting brackets, mounting screws
Mechanical / electrical parameters
- Connection: connector
- Signal type: switching
- Operating mode: Dark ON
- Mounting: top and bottom installation
Recommended applications
- 3C electronics manufacturing
- Automated parking systems
- Logistics and warehousing
Characteristics / technical specifications
- Model: CSF05-T0272DP2-A
- Series: CSF series
- Detection range: 0–2 m
- Number of beams: 72
- Beam pitch: 5 mm
- Protected height: 355 mm
- Supply: DC 24 V
- Ingress protection: IP65
- Output: PNP NC
