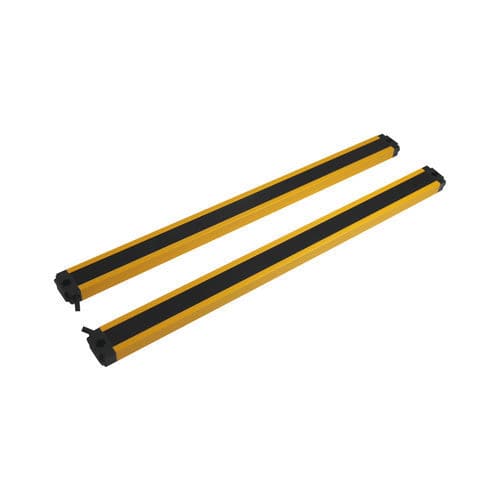

Type 2 safety light curtain CSF05-T0272DN2-Amultibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- type 2 safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65
- Other characteristics
- compact
- Operating range
Max.: 2 m
(6'06" )Min.: 1 m
(3'03" )
Description
Product overview
Key features
Technical specifications
Mechanical / electrical parameters
Recommended applications
Specifications summary
- Name: CSF05-T0272DN2-A
- Series: CSF series safety light curtain
Key features
- Product type: front ultra-thin, through-beam
- Detection range: 0–2 m
- Detection principle: through-beam (emitter/receiver)
- Output: NPN NC (discrete)
- Supply voltage: DC 24 V
- Ingress protection: IP65
Technical specifications
- Cable length: 0.5 m
- Synchronization: optical sync
- Beam pitch: 5 mm
- Number of beams: 72
- Protection height: 355 mm
- Accessories: manual, certificate, mounting brackets, installation screws
Mechanical / electrical parameters
- Output type: NPN NC
- Supply voltage: DC 24 V
- Ingress protection: IP65
- Connection: connector
- Signal type: discrete
- Operating mode: Dark ON
- Mounting: top and bottom installation
Recommended applications
- 3C electronics manufacturing
- Multi-storey parking systems
- Logistics and warehousing
Specifications summary
- Series: CSF series
- Model: CSF05-T0272DN2-A
- Detection range: 0–2 m
- Beams: 72
- Beam pitch: 5 mm
- Protection height: 355 mm
- Output: NPN NC (discrete)
- Power: DC 24 V
- IP rating: IP65
- Synchronization: optical sync
- Cable length: 0.5 m
- Accessories: manual, certificate, mounting brackets, installation screws
