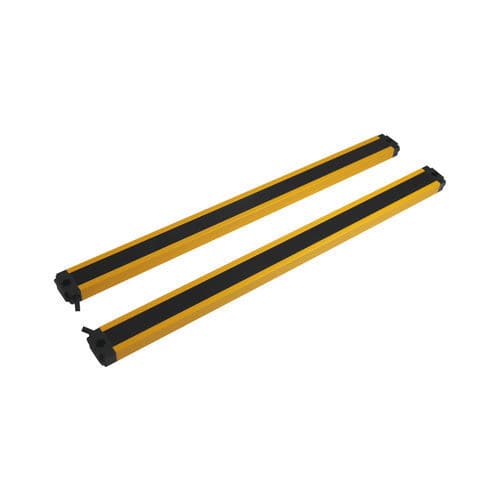

Safety light curtain CSF05-T0264DP2-Amultibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65
- Other characteristics
- compact
- Operating range
Min.: 1 m
(3'03" )Max.: 2 m
(6'06" )
Description
Product overview
Technical specifications
Mechanical / electrical parameters
Recommended applications
Features / technical specifications
- Product family: CSF series light curtain
- Model: CSF05-T0264DP2-A
- Type: front ultra-thin
- Detection range: 0–2 m
- Detection principle: through-beam
- Output type: PNP NC
- Supply voltage: 24 V DC
- Protection rating: IP65
Technical specifications
- Cable length: 0.5 m
- Synchronization: optical synchronization
- Beam pitch: 5 mm
- Number of beams: 64
- Protective height: 315 mm
- Accessories: manual, certificate, mounting bracket, mounting screws
Mechanical / electrical parameters
- Output type: PNP NC
- Supply voltage: 24 V DC
- Protection rating: IP65
- Connection: connector
- Signal type: switching output
- Operating mode: Dark ON
- Mounting: top and bottom mounting
Recommended applications
- 3C electronics industry
- Multi-storey/automated parking systems
- Logistics and warehousing
Features / technical specifications
- Type: front ultra-thin
- Detection range: 0–2 m
- Detection principle: through-beam
- Number of beams: 64
- Beam pitch: 5 mm
- Protective height: 315 mm
- Cable length: 0.5 m
- Synchronization: optical synchronization
- Output type: PNP NC
- Supply voltage: 24 V DC
- Protection rating: IP65
- Connection: connector
- Signal type: switching output
- Operating mode: Dark ON
- Mounting: top and bottom mounting
- Accessories: manual, certificate, mounting bracket, mounting screws
