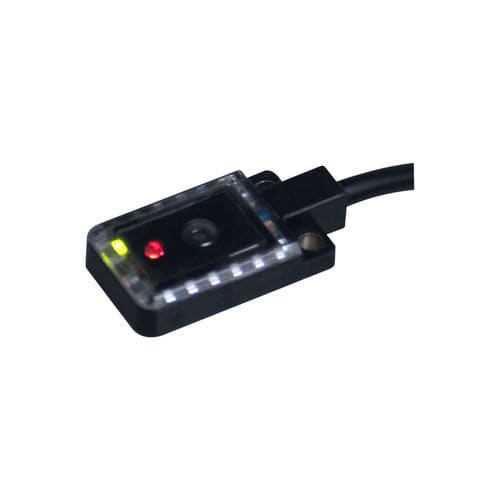

Diffuse reflective sensor photoelectric sensor CPI-DRP30N1

rectangularsquarered light

1. **Naming Rule**
Detection principle: Diffuse‑reflective flat‑type photoelectric sensor.
Light source: Red LED (650nm). Sensing range:5‑30mm.
Mounting hole: M3 type available for part numbers suffixed with (M3).
Output suffix: N=NPN, P=PNP; 1=Light‑ON, 2=Dark‑ON.
‑ NPN: CPI‑DRP30N1(M3), CPI‑DRP30N1; CPI‑DRP30N2(M3), CPI‑DRP30N2
‑ PNP: CPI‑DRP30P1(M3), CPI‑DRP30P1; CPI‑DRP30P2(M3), CPI‑DRP30P2
2. **Available Part Numbers**
CPI‑DRP30N1(M3), CPI‑DRP30N1, CPI‑DRP30N2(M3), CPI‑DRP30N2,
CPI‑DRP30P1(M3), CPI‑DRP30P1, CPI‑DRP30P2(M3), CPI‑DRP30P2
3. **Detection Principle**
Flat‑shape diffuse‑reflective photoelectric sensor. Detects target objects by receiving reflected light from object surface. Features small detection blind zone, compact size for diverse installation conditions.
4. **Sensing Range**
Sensing distance:5‑30 mm; Hysteresis: ≤6 mm.
Light source: Red LED (650 nm).
Indicator: Red action indicator, Green stable indicator.
Consumption current:20 mA.
5. **Main Model Versions**
NPN / PNP open‑collector output, max load current 100 mA, residual voltage ≤3V with 2m cable.
Power supply: DC12‑24V (DC10‑30V max), ripple(p‑p) ≤10%.
6. **Key Features**
‑ Compact flat housing, small detection blind zone; multiple protection circuits for high safety.
‑ Response time: ≤1 ms
‑ Protection: Power‑supply reverse‑connection protection, output short‑circuit protection, output reverse‑connection protection
‑ Withstand voltage: AC1000V 50/60Hz, 1 min
‑ Vibration resistance:10‑550Hz, double amplitude 3 mm, X/Y/Z axis 2 h
‑ Shock resistance:500 m/s², X/Y/Z axis 3 times
‑ Operating temp:‑25~+55 ℃; Storage temp:‑40~+70 ℃(non‑freezing, non‑condensation)
‑ Humidity: Operating 35‑85%RH; Storage 35‑95%RH(non‑condensation)
‑ Protection grade: IP65
7. **Operation Mode**
Light‑ON (light‑received ON) / Dark‑ON (beam‑blocked ON).
8. **Output Options**
NPN / PNP transistor open‑collector output, max load current 100 mA.

> Accessories: Instruction manual, certificate of compliance.
