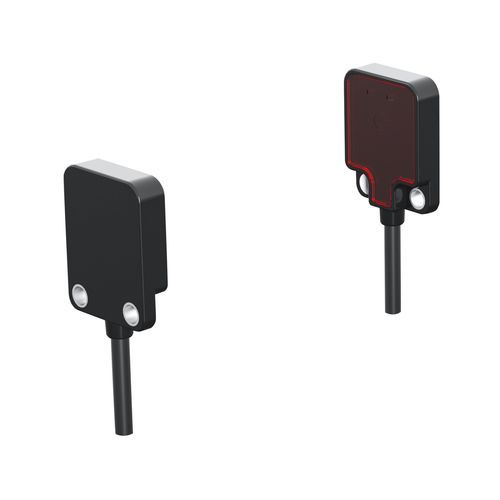

Through-beam photoelectric sensor CPI-TRP300N1rectangularsquarered light
Add to favorites
Compare this product
Characteristics
- Sensing mode
- through-beam
- Housing
- rectangular, square
- Type of beam
- red light
- Other characteristics
- plastic, digital, high-performance, high-speed, waterproof, waterproof
- Applications
- for food industry applications, for small parts, for logistics, for object detection, for robotics, for plastics, for gate, for hygienic applications, for packaging machines, for automatic doors
- Maximum range
Max.: 300 mm
(11.8 in)Min.: 0 mm
(0 in)
Description
1. **Naming Rule**
Detection principle: Through‑beam flat‑type photoelectric sensor.
Light source: Red LED (650nm). Distance code:300=300mm, 500=500mm.
Mounting hole: M2 type.
Output suffix: N=NPN, P=PNP; 1=Light‑ON, 2=Dark‑ON.
‑ NPN: CPI‑TRP300N1, CPI‑TRP500N1; CPI‑TRP300N2, CPI‑TRP500N2
‑ PNP: CPI‑TRP300P1, CPI‑TRP500P1; CPI‑TRP300P2, CPI‑TRP500P2
2. **Available Part Numbers**
CPI‑TRP300N1, CPI‑TRP300N2, CPI‑TRP300P1, CPI‑TRP300P2,
CPI‑TRP500N1, CPI‑TRP500N2, CPI‑TRP500P1, CPI‑TRP500P2
3. **Detection Principle**
Flat‑shape through‑beam photoelectric sensor, composed of transmitter and receiver. Output triggers when opaque object cuts off red light beam. Compact flat body adapts to various installation scenarios.
4. **Sensing Range**
Sensing distance:300 mm / 500 mm.
Light source: Red LED (650 nm).
Indicator: Red action indicator, Green stable indicator.
Consumption current:30 mA.
5. **Main Model Versions**
NPN / PNP open‑collector output, max load current 100 mA, residual voltage ≤3V with 2m cable.
Power supply: DC12‑24V (DC10‑30V max), ripple(p‑p) ≤10%.
6. **Key Features**
‑ Compact flat housing, small detection blind zone; multiple protection circuits for high safety.
‑ Response time: ≤1 ms
‑ Protection: Power‑supply reverse‑connection protection, output short‑circuit protection, output reverse‑connection protection
‑ Withstand voltage: AC1000V 50/60Hz, 1 min
‑ Vibration resistance:10‑550Hz, double amplitude 3 mm, X/Y/Z axis 2 h
‑ Shock resistance:500 m/s², X/Y/Z axis 3 times
‑ Operating temp:‑25~+55 ℃; Storage temp:‑40~+70 ℃(non‑freezing, non‑condensation)
‑ Humidity: Operating 35‑85%RH; Storage 35‑95%RH(non‑condensation)
‑ Protection grade: IP65
7. **Operation Mode**
Light‑ON (light‑received ON) / Dark‑ON (beam‑blocked ON).
8. **Output Options**
NPN / PNP transistor open‑collector output, max load current 100 mA.
>
> Accessories: Instruction manual, certificate of compliance.1. **Naming Rule**
Detection principle: Through‑beam flat‑type photoelectric sensor.
Light source: Red LED (650nm). Distance code:300=300mm, 500=500mm.
Mounting hole: M2 type.
Output suffix: N=NPN, P=PNP; 1=Light‑ON, 2=Dark‑ON.
‑ NPN: CPI‑TRP300N1, CPI‑TRP500N1; CPI‑TRP300N2, CPI‑TRP500N2
‑ PNP: CPI‑TRP300P1, CPI‑TRP500P1; CPI‑TRP300P2, CPI‑TRP500P2
2. **Available Part Numbers**
CPI‑TRP300N1, CPI‑TRP300N2, CPI‑TRP300P1, CPI‑TRP300P2,
CPI‑TRP500N1, CPI‑TRP500N2, CPI‑TRP500P1, CPI‑TRP500P2
3. **Detection Principle**
Flat‑shape through‑beam photoelectric sensor, composed of transmitter and receiver. Output triggers when opaque object cuts off red light beam. Compact flat body adapts to various installation scenarios.
4. **Sensing Range**
Sensing distance:300 mm / 500 mm.
Light source: Red LED (650 nm).
Indicator: Red action indicator, Green stable indicator.
Consumption current:30 mA.
5. **Main Model Versions**
NPN / PNP open‑collector output, max load current 100 mA, residual voltage ≤3V with 2m cable.
Power supply: DC12‑24V (DC10‑30V max), ripple(p‑p) ≤10%.
6. **Key Features**
‑ Compact flat housing, small detection blind zone; multiple protection circuits for high safety.
‑ Response time: ≤1 ms
‑ Protection: Power‑supply reverse‑connection protection, output short‑circuit protection, output reverse‑connection protection
‑ Withstand voltage: AC1000V 50/60Hz, 1 min
‑ Vibration resistance:10‑550Hz, double amplitude 3 mm, X/Y/Z axis 2 h
‑ Shock resistance:500 m/s², X/Y/Z axis 3 times
‑ Operating temp:‑25~+55 ℃; Storage temp:‑40~+70 ℃(non‑freezing, non‑condensation)
‑ Humidity: Operating 35‑85%RH; Storage 35‑95%RH(non‑condensation)
‑ Protection grade: IP65
7. **Operation Mode**
Light‑ON (light‑received ON) / Dark‑ON (beam‑blocked ON).
8. **Output Options**
NPN / PNP transistor open‑collector output, max load current 100 mA.
>
> Accessories: Instruction manual, certificate of compliance.1. **Naming Rule**
Detection principle: Through‑beam flat‑type photoelectric sensor.
Light source: Red LED (650nm). Distance code:300=300mm, 500=500mm.
Mounting hole: M2 type.
Output suffix: N=NPN, P=PNP; 1=Light‑ON, 2=Dark‑ON.
‑ NPN: CPI‑TRP300N1, CPI‑TRP500N1; CPI‑TRP300N2, CPI‑TRP500N2
‑ PNP: CPI‑TRP300P1, CPI‑TRP500P1; CPI‑TRP300P2, CPI‑TRP500P2
2. **Available Part Numbers**
CPI‑TRP300N1, CPI‑TRP300N2, CPI‑TRP300P1, CPI‑TRP300P2,
CPI‑TRP500N1, CPI‑TRP500N2, CPI‑TRP500P1, CPI‑TRP500P2
3. **Detection Principle**
Flat‑shape through‑beam photoelectric sensor, composed of transmitter and receiver. Output triggers when opaque object cuts off red light beam. Compact flat body adapts to various installation scenarios.
4. **Sensing Range**
Sensing distance:300 mm / 500 mm.
Light source: Red LED (650 nm).
Indicator: Red action indicator, Green stable indicator.
Consumption current:30 mA.
5. **Main Model Versions**
NPN / PNP open‑collector output, max load current 100 mA, residual voltage ≤3V with 2m cable.
Power supply: DC12‑24V (DC10‑30V max), ripple(p‑p) ≤10%.
6. **Key Features**
‑ Compact flat housing, small detection blind zone; multiple protection circuits for high safety.
‑ Response time: ≤1 ms
‑ Protection: Power‑supply reverse‑connection protection, output short‑circuit protection, output reverse‑connection protection
‑ Withstand voltage: AC1000V 50/60Hz, 1 min
‑ Vibration resistance:10‑550Hz, double amplitude 3 mm, X/Y/Z axis 2 h
‑ Shock resistance:500 m/s², X/Y/Z axis 3 times
‑ Operating temp:‑25~+55 ℃; Storage temp:‑40~+70 ℃(non‑freezing, non‑condensation)
‑ Humidity: Operating 35‑85%RH; Storage 35‑95%RH(non‑condensation)
‑ Protection grade: IP65
7. **Operation Mode**
Light‑ON (light‑received ON) / Dark‑ON (beam‑blocked ON).
8. **Output Options**
NPN / PNP transistor open‑collector output, max load current 100 mA.
>
> Accessories: Instruction manual, certificate of compliance.1. **Naming Rule**
Detection principle: Through‑beam flat‑type photoelectric sensor.
Light source: Red LED (650nm). Distance code:300=300mm, 500=500mm.
Mounting hole: M2 type.
Output suffix: N=NPN, P=PNP; 1=Light‑ON, 2=Dark‑ON.
‑ NPN: CPI‑TRP300N1, CPI‑TRP500N1; CPI‑TRP300N2, CPI‑TRP500N2
‑ PNP: CPI‑TRP300P1, CPI‑TRP500P1; CPI‑TRP300P2, CPI‑TRP500P2
2. **Available Part Numbers**
CPI‑TRP300N1, CPI‑TRP300N2, CPI‑TRP300P1, CPI‑TRP300P2,
CPI‑TRP500N1, CPI‑TRP500N2, CPI‑TRP500P1, CPI‑TRP500P2
3. **Detection Principle**
Flat‑shape through‑beam photoelectric sensor, composed of transmitter and receiver. Output triggers when opaque object cuts off red light beam. Compact flat body adapts to various installation scenarios.
4. **Sensing Range**
Sensing distance:300 mm / 500 mm.
Light source: Red LED (650 nm).
Indicator: Red action indicator, Green stable indicator.
Consumption current:30 mA.
5. **Main Model Versions**
NPN / PNP open‑collector output, max load current 100 mA, residual voltage ≤3V with 2m cable.
Power supply: DC12‑24V (DC10‑30V max), ripple(p‑p) ≤10%.
6. **Key Features**
‑ Compact flat housing, small detection blind zone; multiple protection circuits for high safety.
‑ Response time: ≤1 ms
‑ Protection: Power‑supply reverse‑connection protection, output short‑circuit protection, output reverse‑connection protection
‑ Withstand voltage: AC1000V 50/60Hz, 1 min
‑ Vibration resistance:10‑550Hz, double amplitude 3 mm, X/Y/Z axis 2 h
‑ Shock resistance:500 m/s², X/Y/Z axis 3 times
‑ Operating temp:‑25~+55 ℃; Storage temp:‑40~+70 ℃(non‑freezing, non‑condensation)
‑ Humidity: Operating 35‑85%RH; Storage 35‑95%RH(non‑condensation)
‑ Protection grade: IP65
7. **Operation Mode**
Light‑ON (light‑received ON) / Dark‑ON (beam‑blocked ON).
8. **Output Options**
NPN / PNP transistor open‑collector output, max load current 100 mA.
> Accessories: Instruction manual, certificate of compliance.
