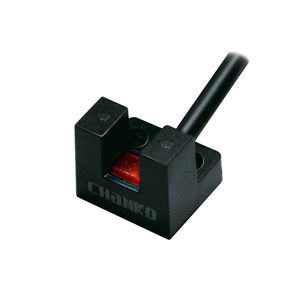

Through-beam photoelectric sensor CPG-TF05N3L-Ainfrared
Add to favorites
Compare this product
Characteristics
- Sensing mode
- through-beam
- Type of beam
- infrared
- Maximum range
Min.: 0 mm
(0 in)Max.: 5 mm
(0.2 in)
Description
Product family
Overview
Technical specifications
Mechanical / electrical parameters
Operating environment
Documentation & illustrations
Technical characteristics / specifications
- CPG series photoelectric sensors
Overview
- Detection distance: 0–5 mm
- Structure: slot type
- Detection principle: through-beam
- Slot width: 5 mm
- Output: PNP NO/NC
- Supply voltage: DC 5–24 V
Technical specifications
- Detection distance: 0–5 mm
- Structure: slot type
- Detection principle: through-beam
- Slot width: 5 mm
- Cable length: 0.5 m
- Detection direction: slot face
- Response frequency: 1000 Hz
- Response time: 500 μs
- Special feature: L-shaped
- Light source: infrared
- Accessories: instruction manual, certificate
- Standard detectable object: opaque object ≥ 2 × 0.8 mm
- Materials: housing PBT; optical parts (light guide, emitter, receiver) polycarbonate; cable PVC
Mechanical / electrical parameters
- Output type: PNP NO/NC
- Supply voltage: DC 5–24 V
- Powering: DC four-wire
- Protection rating: IP50
- Connection: connector
- Signal type: switching
- Operation mode: Light ON / Dark ON
- Current consumption: ≤ 12 mA
- Indicator: red (lights when receiving light)
- Protection: short-circuit protection
- Residual voltage: ≤ 0.8 V (load 100 mA), ≤ 0.4 V (load 40 mA); PNP open-collector output DC 5–24 V, ≤ 50 mA, residual voltage ≤ 0.8 V (load 50 mA)
- Load current: as per residual voltage specifications
- Shock resistance: 300 m/s², 3 times each on X, Y, Z
- Vibration resistance: 20–2000 Hz, amplitude 1.5 mm, 2 h each on X, Y, Z
- Weight: approx. 3 g
Operating environment
- Operating temperature: -25 °C to 55 °C
- Operating humidity: 5–95% RH (no condensation, no icing)
- Ambient illuminance: ≤ 1000 lx
Documentation & illustrations
- Control output diagram and dimensional drawing (provided on product page)
- Accessories listed: instruction manual, certificate; downloadable manual PDF available
Technical characteristics / specifications

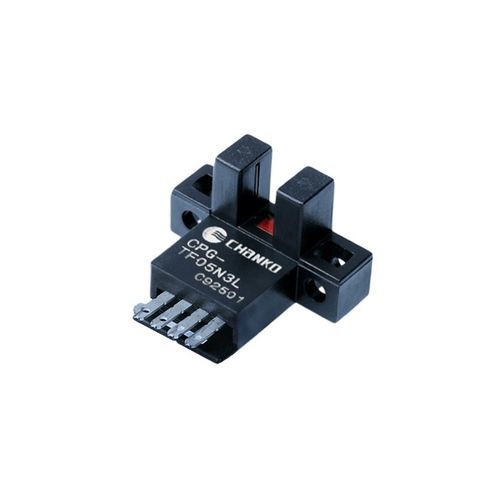

- Model: CPG-TF05N3L-A
- Series: CPG
- Detection distance: 0–5 mm
- Structure: slot type, slot width 5 mm
- Principle: through-beam
- Light source: infrared
- Response frequency: 1000 Hz
- Response time: 500 μs
- Output: PNP NO/NC (switching)
- Supply voltage: DC 5–24 V
- Current consumption: ≤ 12 mA
- Protection: IP50
- Cable length: 0.5 m
- Operating temperature: -25 °C to 55 °C
- Weight: approx. 3 g
- Materials: housing PBT; optical parts polycarbonate; cable PVC
