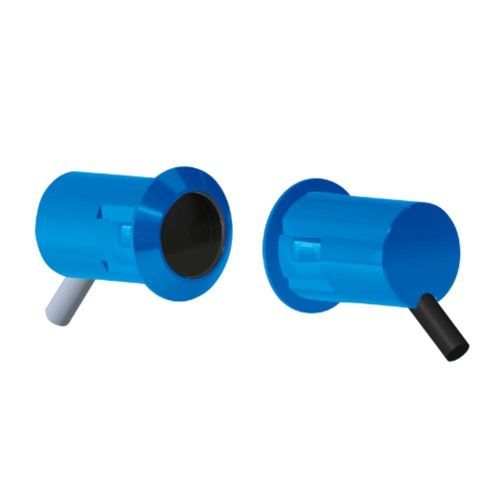

Through-beam photoelectric sensor CPQ-TF4MN2/KB
through-beam sensorcylindricalinfrared

Through-beam photoelectric sensor - CPQ-TF4MN2/KB - CHANKO SENSOR - through-beam sensor / cylindrical / infrared
Through-beam photoelectric sensor - CPQ-TF4MN2/KB - CHANKO SENSOR - through-beam sensor / cylindrical / infrared
Add to favorites
Compare this product
Go to the CHANKO SENSOR website for more information

Characteristics

Sensing mode
through-beam, through-beam sensor
Housing
cylindrical
Type of beam
infrared
Other characteristics
plastic, IP67
Maximum range

Min.: 0 m
(0'00" )

Max.: 4 m
(13'01" )

Description

Product overview
  • Product: Photoelectric through-beam sensor
  • Model: CPQ-TF4MN2/KB
  • Brand: 长江传感
  • Detection range: 0-4 m
  • Housing: cylindrical
  • Sensing principle: through-beam
  • Output: NPN NO (switching)
  • Supply voltage: DC 5-24V, three-wire
  • Cable length: 2 m


Technical specifications
  • Detection range: 0-4 m
  • Structure: cylindrical
  • Sensing principle: through-beam
  • Cable length: 2 m
  • Detection direction: front
  • Response frequency: 100 Hz
  • Response time: 5 ms
  • Light source: infrared
  • Accessories: user manual, inspection certificate
  • Beam angle: ≤4°
  • Standard target: opaque object Ø ≥ 5 mm
  • Materials: housing ABS; lens PC; cable PVC


Mechanical / Electrical parameters
  • Output: NPN NO
  • Supply voltage: DC 5-24V
  • Wiring: DC three-wire
  • Ingress protection: IP67
  • Connection: molded cable
  • Signal type: switching
  • Operating mode: Dark ON
  • Current consumption: < 20 mA
  • Indicator: power LED (red)
  • Protection circuits: short-circuit protection, reverse polarity protection
  • Residual voltage: < 3 V
  • Load current: < 100 mA (residual voltage < 3 V with 2 m cable)
  • Shock resistance: 300 m/s², 3 times each on X, Y, Z
  • Dielectric strength: AC 1000 V 50/60 Hz 1 min (between live parts and housing)
  • Vibration resistance: 10-55 Hz amplitude 1.5 mm, 2 h each X, Y, Z


Environmental conditions
  • Operating temperature: -25°C to 55°C
  • Operating/storage humidity: 35-95% RH (no condensation)
  • Ambient illumination: ≤ 8000 lx


Accessories & documentation
  • Included: user manual, inspection certificate


Model / specifications summary
  • Model: CPQ-TF4MN2/KB
  • Series: CPQ series photoelectric sensors
  • Detection distance: 0-4 m
  • Output: NPN NO, switching
  • Supply: DC 5-24V, three-wire
  • Ingress protection: IP67
  • Materials: housing ABS, lens PC, cable PVC
  • Response frequency / time: 100 Hz / 5 ms
  • Standard detection object: opaque object Ø ≥ 5 mm
