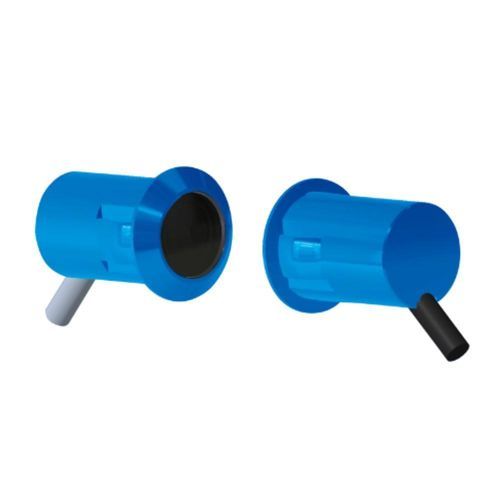

Through-beam sensor photoelectric sensor CPQ-TF4MP2/KBthrough-beamcylindricalinfrared
Add to favorites
Compare this product
Characteristics
- Sensing mode
- through-beam sensor, through-beam
- Housing
- cylindrical
- Type of beam
- infrared
- Other characteristics
- plastic, IP67
- Maximum range
Min.: 0 m
(0'00" )Max.: 4 m
(13'01" )
Description
Product information
Technical specifications
Mechanical/Electrical parameters
Operating environment
Features / Technical summary
- Detection distance: 0~4 m
- Housing: cylindrical
- Sensing principle: through-beam (transmissive)
- Output: PNP NO
- Supply voltage: DC 5~24 V
- Power connection: 3-wire DC
Technical specifications
- Detection distance: 0~4 m
- Cable length: 2 m
- Detection direction: front
- Response frequency: 100 Hz
- Response time: 5 ms
- Light source: infrared
- Accessories: user manual, inspection certificate
- Beam angle: ≤ 4°
- Standard target: opaque object Ø ≥ 5 mm
- Materials: housing ABS; lens PC; cable PVC
Mechanical/Electrical parameters
- Output: PNP NO
- Supply voltage: DC 5~24 V
- Power connection: 3-wire DC
- Ingress protection: IP67
- Connection: molded cable
- Signal type: switching
- Operation mode: Dark ON
- Current consumption: < 20 mA
- Indicator: power indicator (red)
- Protection circuits: short-circuit protection, reverse connection protection
- Residual voltage: < 3 V
- Load current: ≤ 100 mA (with 2 m cable residual voltage < 3 V)
- Shock resistance: 300 m/s², X/Y/Z directions, 3 times
- Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, amplitude 1.5 mm, X/Y/Z directions, 2 h
Operating environment
- Operating temperature: -25 °C ~ 55 °C
- Operating/storage humidity: 35–95 % RH (no condensation)
- Ambient illumination: ≤ 8000 lx
Features / Technical summary
- Model: CPQ-TF4MP2/KB
- Series: CPQ series photoelectric sensors
- Detection distance: 0~4 m
- Sensing principle: through-beam (infrared)
- Structure: cylindrical, front detection
- Supply: DC 5~24 V, 3-wire DC
- Output: PNP NO, switching, Dark ON
- Ingress protection: IP67
- Cable length: 2 m (molded cable)
- Response frequency/time: 100 Hz / 5 ms
- Materials: housing ABS, lens PC, cable PVC
- Working environment: -25 °C ~ 55 °C, 35–95 % RH, no condensation
- Standard target: opaque object Ø ≥ 5 mm
- Accessories: user manual, inspection certificate
