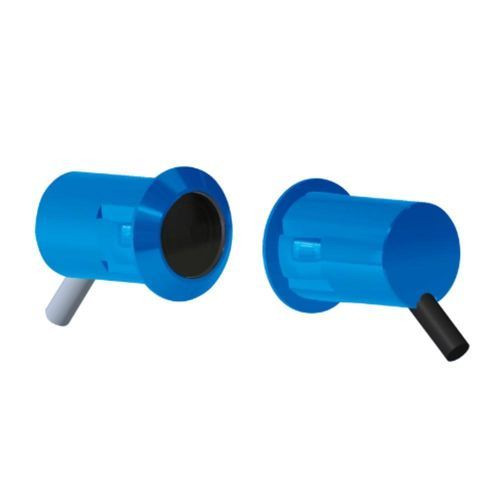

Through-beam photoelectric sensor CPQ-TF4MP1/KBcylindricalinfraredplastic
Add to favorites
Compare this product
Characteristics
- Sensing mode
- through-beam
- Housing
- cylindrical
- Type of beam
- infrared
- Other characteristics
- plastic, IP67
- Applications
- for logistics
- Maximum range
Min.: 0 m
(0'00" )Max.: 4 m
(13'01" )
Description
Product
Main characteristics
Technical specifications
Mechanical / electrical parameters
Operating environment
Recommended applications
- Series: CPQ series photoelectric sensors
- Model: CPQ-TF4MP1/KB (through-beam)
Main characteristics
- Detection range: 0–4 m
- Structure: cylindrical
- Sensing principle: through-beam (infrared)
- Output: PNP NC, switching output, Light ON
- Power supply: DC 5–24 V, DC three-wire
- Cable: molded cable, 2 m
- Protection rating: IP67
Technical specifications
- Response frequency: 100 Hz
- Response time: 5 ms
- Light source: infrared
- Beam angle: ≤4°
- Standard target: opaque object Ø ≥ 5 mm
- Materials: housing ABS; lens PC; cable PVC
- Accessories: product manual, certificate
Mechanical / electrical parameters
- Output type: PNP NC
- Power supply: DC 5–24 V
- Wiring: DC three-wire
- Signal type: switching
- Operating mode: Light ON
- Current consumption: <20 mA
- Load current: ≤100 mA (residual voltage ≤3 V with 2 m cable)
- Residual voltage: ≤3 V
- Indicator: power LED (red)
- Protection circuits: short-circuit protection, reverse polarity protection
- Shock resistance: 300 m/s², 3 shocks on X, Y, Z
- Vibration resistance: 10–55 Hz, 1.5 mm amplitude, 2 h per axis
- Dielectric strength: AC 1000 V 50/60 Hz, 1 min (charged parts vs. housing)
Operating environment
- Operating temperature: -25 °C to 55 °C
- Operating/storage humidity: 35–95% RH (no condensation)
- Ambient illuminance: ≤8000 lx
Recommended applications
- Electronics (3C) industry
- Automated parking systems
- Logistics and warehousing
