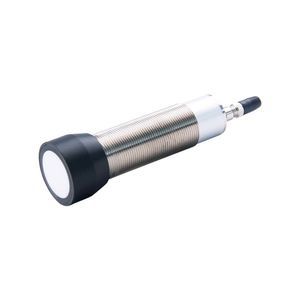

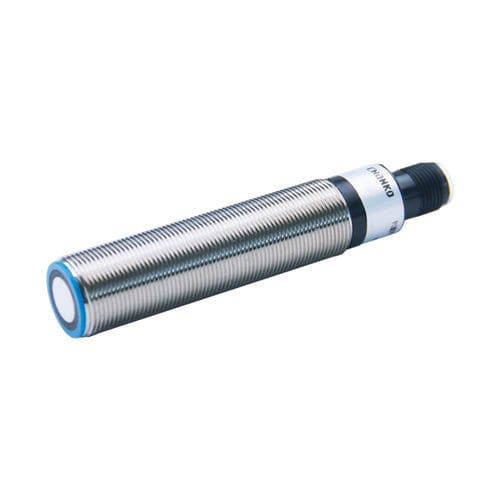

Diffuse reflective ultrasonic sensor CU18-D1MDA-A
Add to favorites
Compare this product
Characteristics
- Sensing mode
- diffuse reflective
Description
Product name
Main features
Technical specifications
Mechanical / electrical parameters
Key characteristics / specifications
- Model: CU18-D1MDA-A
- Series: CU18
- Manufacturer: 长江传感
Main features
- Response frequency: ≤40 Hz
- Detection range: 70–1000 mm
- Housing size: M18
- Output: 4–20 mA (analog)
- Signal type: Analog
Technical specifications
- Detection range: 70–1000 mm
- Construction: Cylindrical
- Detection principle: Diffuse reflection
- Housing size: M18
- Protection rating: IP65
- Functions: Temperature compensation, switching point setting, output configuration
- Housing material: Brass, nickel-plated
- Mounting: Flush/embedded
- Standard target: 100 × 100 mm
- Operating temperature: -25 to 70 °C
Mechanical / electrical parameters
- Response frequency: ≤40 Hz
- Signal type: Analog
- Output: 4–20 mA
- Supply voltage: DC 15–30 V
- Repeatability: ≤0.1%
- Current consumption: < 50 mA
- Temperature drift: ±1.5%
- Connection: Connector
Key characteristics / specifications
- Model: CU18-D1MDA-A
- Series: CU18
- Type: Ultrasonic sensor
- Detection range: 70–1000 mm
- Output: 4–20 mA analog
- Supply voltage: DC 15–30 V
- Housing material: Brass, nickel-plated
- Protection: IP65
- Operating temperature: -25 to 70 °C
- Housing size: M18
- Mounting: Flush/embedded
