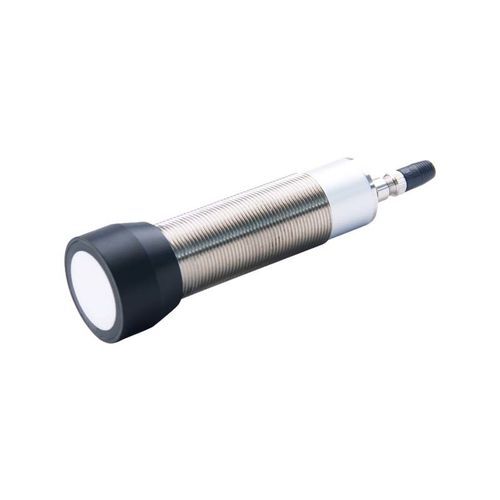

Diffuse reflective ultrasonic sensor CU30-D2MDS-A
Add to favorites
Compare this product
Characteristics
- Sensing mode
- diffuse reflective
Description
Product
Key features
Technical specifications
Mechanical / Electrical parameters
Recommended applications
- Model: CU30-D2MDS-A
- Series: CU30 ultrasonic sensor
- Response frequency: ≤13 Hz
- Detection range: 300–2000 mm
- Housing size: M30
- Signal type: Analog
- Output: 4–20 mA current / 0–10 V voltage
Key features
- Detection range: 300–2000 mm
- Cylindrical M30 housing
- Diffuse-reflection detection principle
- Protection rating: IP65
- Functions: temperature compensation, switch-point setting, output configuration
- Housing material: nickel-plated brass
- Mounting: flush/embedded
- Standard target: 100×100 mm
- Operating temperature: −25–70 °C
Technical specifications
- Detection range: 300–2000 mm
- Structure: cylindrical
- Detection principle: diffuse reflection
- Housing size: M30
- Protection rating: IP65
- Signal/Output: Analog, 4–20 mA or 0–10 V
- Supply: DC 15–30 V
- Repeatability: ≤0.1%
- Operating temperature: −25–70 °C
- Housing material: nickel-plated brass
- Mounting: flush/embedded
Mechanical / Electrical parameters
- Response frequency: ≤13 Hz
- Signal type: Analog
- Supply voltage: DC 15–30 V
- Repeatability: ≤0.1%
- Current consumption: <90 mA
- Temperature drift: ±2%
- Connection: connector
- Output: 4–20 mA / 0–10 V
Recommended applications
- Electronics (3C) industry
- Multi-storey parking systems
- Logistics and warehousing
Catalogs
No catalogs are available for this product.
See all of CHANKO SENSOR‘s catalogsOther CHANKO SENSOR products

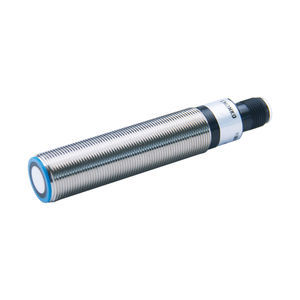

CU Series Ultrasonic Sensor
