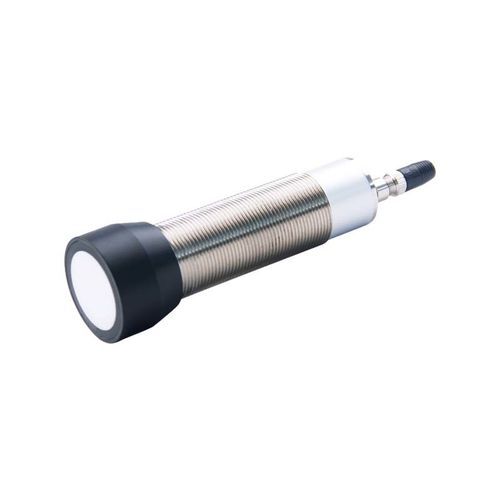

Diffuse reflective ultrasonic sensor CU30-D4MDS-A

Product
Ultrasonic sensor CU30-D4MDS-A — CU30 series ultrasonic sensor

Key features

• Response frequency: ≤13 Hz
• Detection distance: 300–4000 mm
• Housing size: M30
• Signal type: Analog
• Outputs: 4–20 mA current / 0–10 V voltage

Technical specifications

• Detection range: 300–4000 mm
• Sensor shape: Cylindrical
• Detection principle: Diffuse reflection
• Housing: M30
• Ingress protection: IP65
• Functions: Temperature compensation; switching point setting; output configuration
• Material: Nickel-plated brass housing
• Mounting: Flush-mounted
• Standard target: 100×100 mm
• Operating temperature: -25 to 70 °C

Mechanical / electrical parameters

• Response frequency: ≤13 Hz
• Signal type: Analog
• Supply voltage: DC 15–30 V
• Repeatability: ≤0.1%
• Supply current: ≤90 mA
• Temperature drift: ≤2%
• Connection: Connector
• Outputs: 4–20 mA / 0–10 V

Model / specifications

• Model: CU30-D4MDS-A
• Series: CU30 ultrasonic sensors
• Range: 300–4000 mm
• Output: 4–20 mA / 0–10 V (analog)
• Supply: DC 15–30 V
• Housing material: Nickel-plated brass
• IP rating: IP65
• Operating temperature: -25 to 70 °C
• Housing size: M30
